Littelfuse Inc.United States

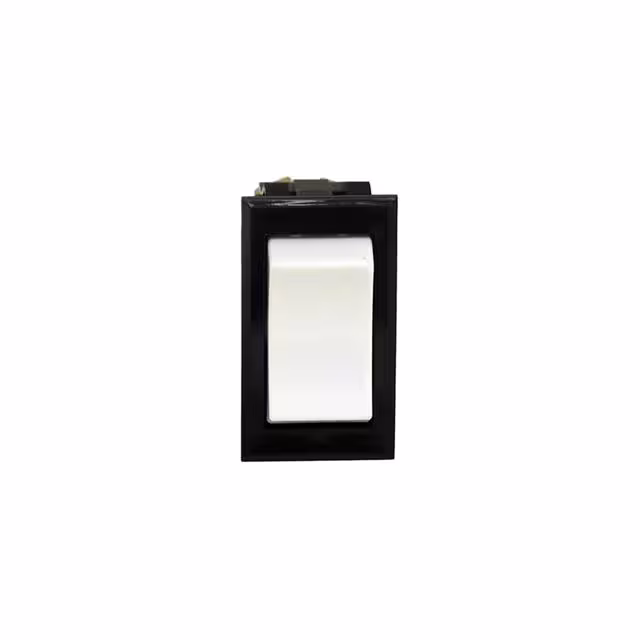

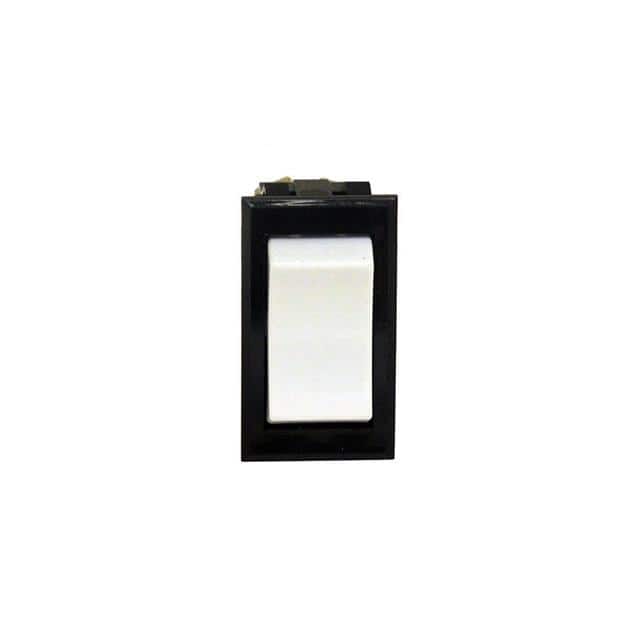

SWITCH RKR DPDT MOM
All alternatives
View full reportTechnical parameters
Key specs
CircuitDPDT
Switch functionMom-Off-Mom
Current rating25 AMax
Voltage rating12 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 25A (DC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - DC | 12 V |
| Environment and package | |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature | - |
| Package | Bulk |
| Panel Cutout Dimensions | Rectangular - 36.83mm x 21.08mm |
| Other | |
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Circuit | DPDT |
| Color - Actuator/Cap | White |
| Electrical Life | - |
| Features | - |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | - |
| Mfr | Littelfuse Inc. |
| Product Status | Active |
| Series | 57000 |
| Switch Function | Mom-Off-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
