Aavid, Thermal Division of Boyd CorporationUnited States

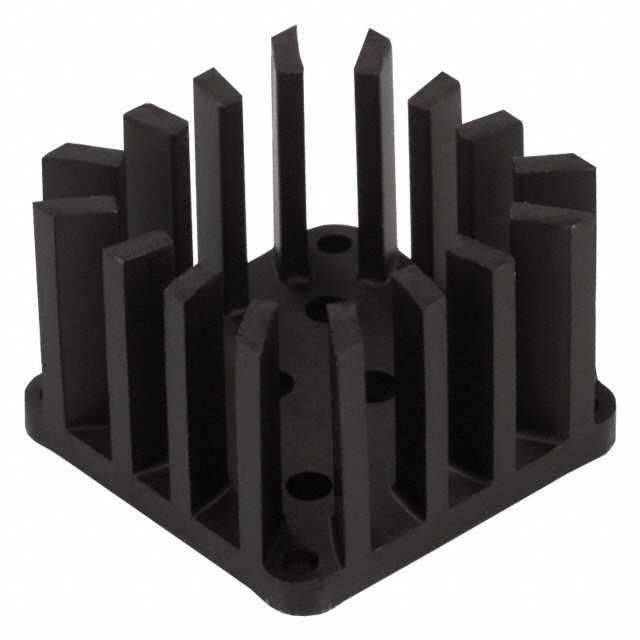

HEATSINK TO-3 1.25" 25WATT
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 1.250" (31.75mm) |
| Package | Bulk |
| Package Cooled | TO-3 |
| Power Dissipation @ Temperature Rise | 5.0W @ 30°C |
| Thermal Resistance @ Forced Air Flow | 2.50°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 5.40°C/W |
| Other | |
| Attachment Method | Bolt On |
| Base Product Number | 568303 |
| Diameter | - |
| Length | 1.810" (45.97mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Aavid, Thermal Division of Boyd Corporation |
| Product Status | Obsolete |
| Series | - |
| Shape | Square |
| Type | Board Level |
| Width | 1.810" (45.97mm) |
