APEM Inc.France

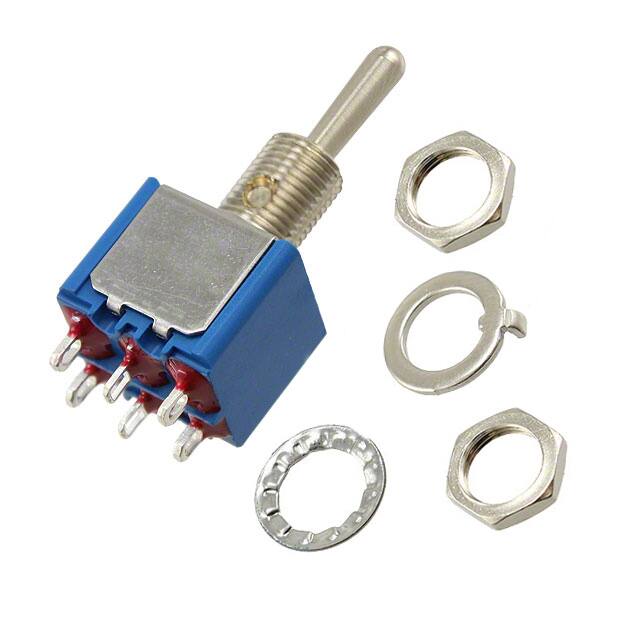

SWITCH TOGGLE DPDT 6A 125V
All alternatives
View full reportTechnical parameters
Key specs
CircuitDPDT
Switch functionOn-Off-On
Current rating6 AMax
Voltage rating125 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 6A (AC), 4A (DC) |
| Illumination Voltage (Nominal) | - |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
| Environment and package | |
| Mounting Type | Panel Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tray |
| Panel Cutout Dimensions | Circular - 6.50mm Dia |
| Other | |

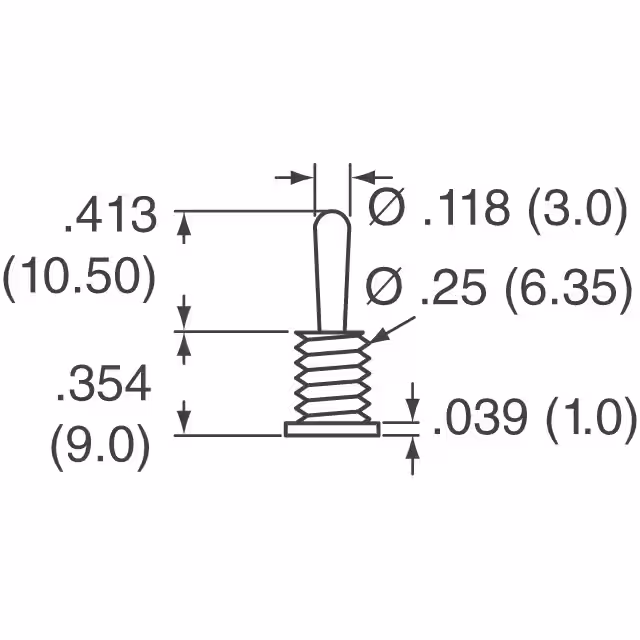

| Actuator Length | 10.50mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Base Product Number | 5649A |
| Bushing Thread | 1/4-40 |
| Circuit | DPDT |
| Electrical Life | 50,000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mfr | APEM Inc. |
| Product Status | Active |
| Series | 5000 |
| Switch Function | On-Off-On |
| Termination Style | Solder Lug |
