Bourns Inc.United States

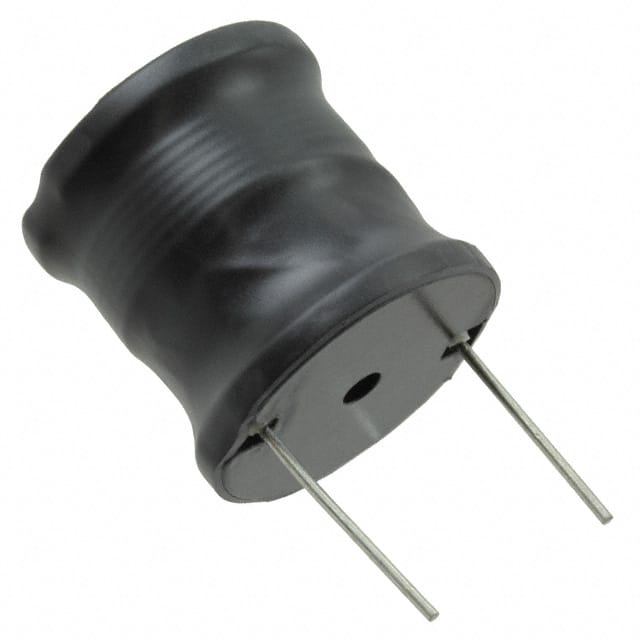

FIXED IND 1MH 3.5A 195 MOHM TH
All alternatives
View full reportTechnical parameters
Key specs
Inductance1 mH
Rated current3.5 AMax
DC resistance195 mΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 3.5 A |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | - |
| Inductance Frequency - Test | 1 kHz |
| Environment and package | |
| Height - Seated (Max) | 1.110" (28.19mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~105°C |
| Package | Bulk |
| Package / Case | Radial, Vertical Cylinder |
| Size / Dimension | 1.500" Dia (38.10mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 5623 |
| DC Resistance (DCR) | 195mOhm Max |
| Inductance | 1 mH |
| Material - Core | Ferrite |
| Mfr | Bourns Inc. |
| Product Status | Obsolete |
| Q @ Freq | - |
| Ratings | - |
| Series | 5600 |
| Shielding | Unshielded |
| Tolerance | ±10% |
| Type | Drum Core, Wirewound |
