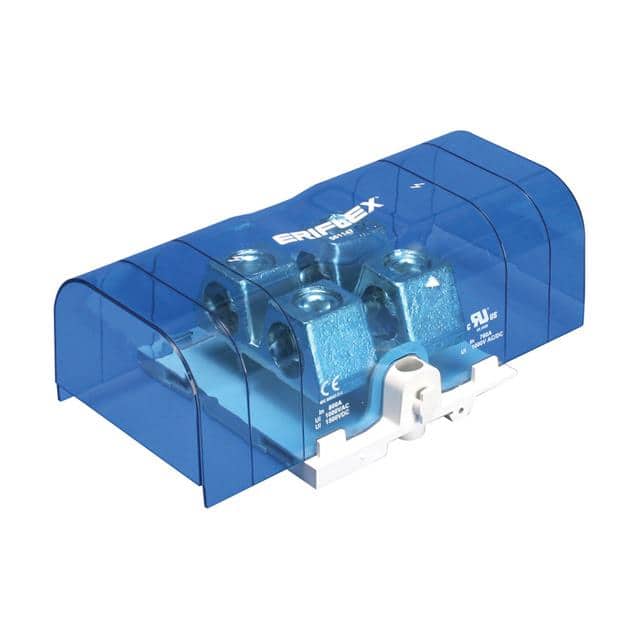

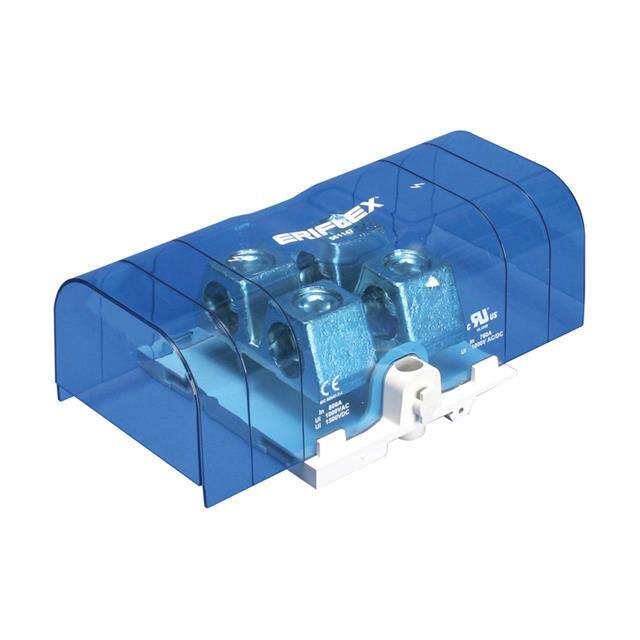

POWER TERMINAL, TUNNEL-TO-TUNNEL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 760 A |
| Voltage - Rated | 1000 V |
| Environment and package | |
| Line Side Wire/Stud Size | 500MCM (kcmil)-3/0 AWG |
| Load Side Wire/Stud Size | 500MCM (kcmil)-3/0 AWG |
| Package | Retail Package |
| Other | |
| Line Side Connections Per Pole | 2 |
| Line Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 2 |
| Load Side Connection Type | Screw Connection |
| Mfr | nVent |
| Number of Poles | 4 |
| Product Status | Active |
| Series | - |
| Type | Power Stud Terminal Block |
