55200-00-02-A
Littelfuse Inc.United States

55200-00-02-A

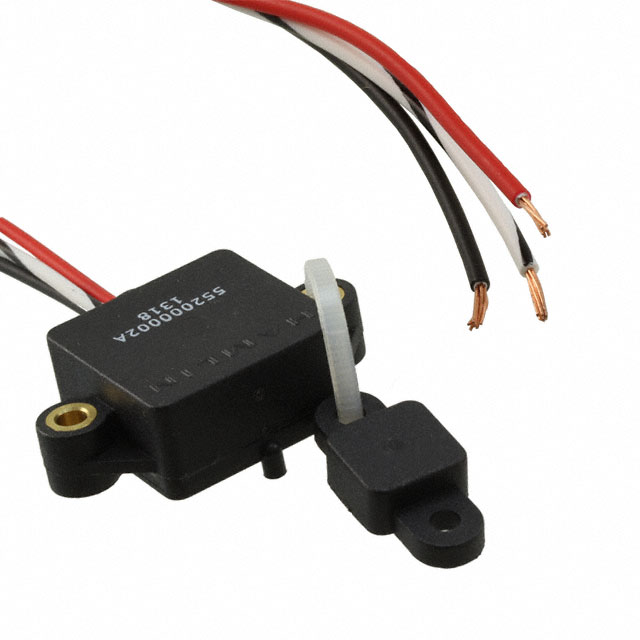

Angle, Linear Position Measuring

SENSOR ANGLE 360DEG WIRE LEADS

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage - Supply4.5V ~ 5.5V
Environment and package
Mounting TypeChassis Mount
Operating Temperature-40°C ~ 90°C
Package / CaseBox with Wire Leads
Supplier Device Package-
Other
Actuator TypeExternal Magnet, Included
DigiKey Programmable-
For MeasuringAngle
Linearity-
Linear Range-
ManufacturerLittelfuse Inc.
OutputAnalog Voltage
Output SignalClockwise Increase
PackagingBox
Part StatusObsolete
Resistance Tolerance-
Rotation Angle - Electrical, Mechanical0° ~ 360°, Continuous
Series-
TechnologyHall Effect
Termination StyleWire Leads

Documents

No documents are linked to this part yet.
