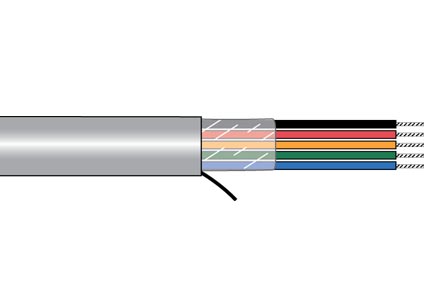

ActiveXtra-Guard 1 14 AWG 7 Conductor is a high performance PVC cable for general-purpose applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 600 V RMS |
| Environment and package | |
| 1) Temperature Range | -30 to 105°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code E |
| 1) Component 1 | 7 X 1 COND |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 7 Components Cabled |
| 2) Capacitance | 27 pF/ft @1 kHz, Nominal Conductor to Conductor |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) IEC | EN 60332-1 Flame Behavior |
| 3) Inductance | 0.19 μH/ft, Nominal |
| 3) Pull Tension | 225 Lbs, Maximum |
| 4) CE | EU Low Voltage Directive 2014/35/EU |
| 4) Conductor DCR | 2.8 Ω/1000ft @20°C, Nominal |
| 4) Sunlight Resistance | Yes |
| a) 1000 FT | 30 x 14 x 12 Continuous length |
| a) Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| a) Twists | 2.0 Twists/foot (min) |
| AWM/STYLE 21896 | 105°C / 600 V RMS |
| AWM/STYLE 2501 | 105°C / 600 V RMS |
| b) 500 FT | 18 x 14.25 x 8 Continuous length |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Ripcord | 1 End 810 Denier Nylon |
| c) 100 FT | 18 x 9 x 8 Continuous length |
| c) Core Wrap | Nonwoven Polyester Tape, 20% Overlap, Min. |
| Color | BLACK |
| Cond | 1 |
| c) Print | ALPHA WIRE-* P/N 5447 7C 14 AWG XTRAGUARD(R) 1 (UL) MTW 600V OR AWM 2501 105C 600V OR AWM 21896 105C 600V SUN RES 60C OIL VW-1 OR CRU AWM I/II A/B 105C 600V FT4 CE ROHS (SEQ FOOTAGE) * = Factory Code |
| Electrical Properties | (For Engineering purposes only) |
| MTW | 90°C Dry / 60°C Wet / 600 V RMS |
| Packaging | Flange x Traverse x Barrel (inches) |
