Mill-Max Manufacturing Corp.United States

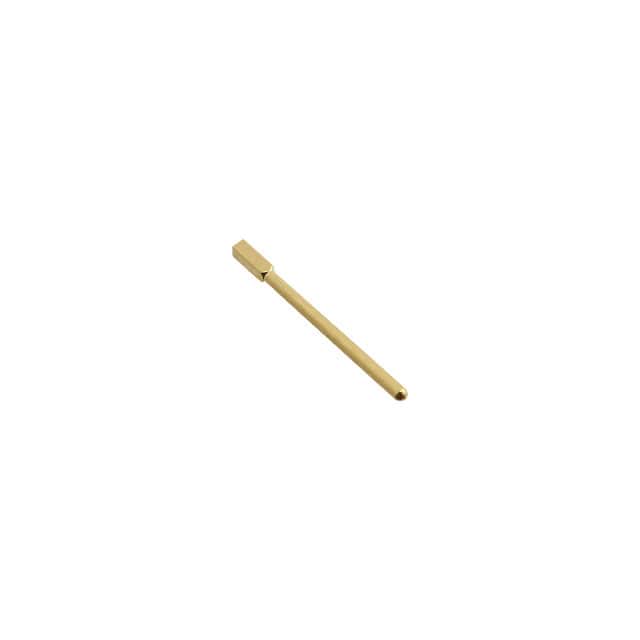

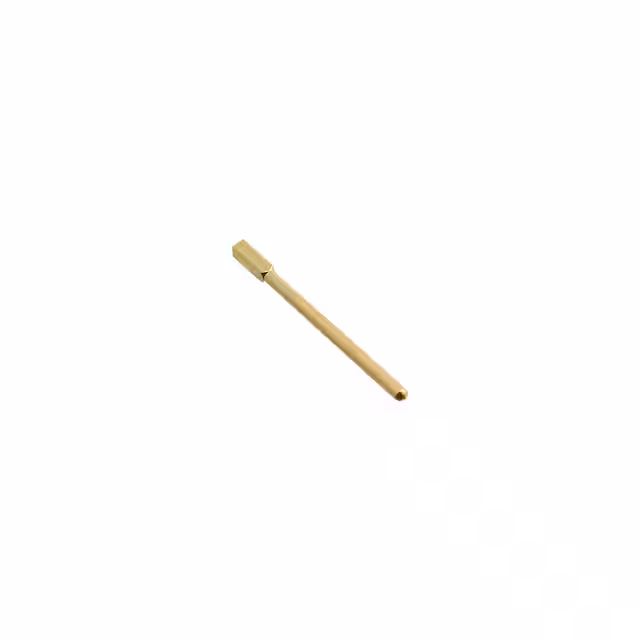

CONN PC PIN CIRC 0.018DIA GOLD
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Hole Diameter | 0.022" (0.56mm) |
| Mounting Type | Through Hole |
| Package | Bulk |
| Pin Size - Above Flange | 0.018" (0.46mm) Dia |
| Pin Size - Below Flange | - |
| Other | |
| Base Product Number | 5435-0 |
| Board Thickness | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Material | Brass Alloy |
| Flange Diameter | - |
| Insulation | Non-Insulated |
| Insulation Color | - |
| Length - Above Flange | 0.243" (6.17mm) |
| Length - Below Flange | - |
| Length - Overall | 0.303" (7.70mm) |
| Material - Insulation | - |
| Mfr | Mill-Max Manufacturing Corp. |
| Product Status | Active |
| Series | 5435 |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit, Square |
