TE ConnectivitySwitzerland

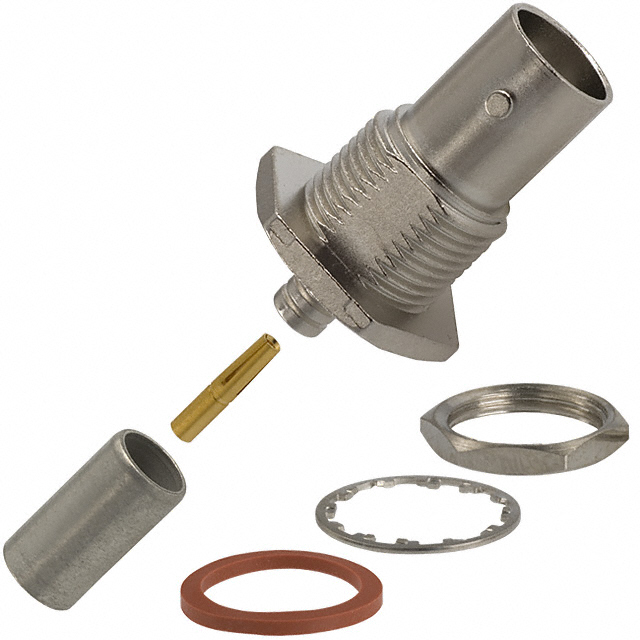

CONN BNC JACK STR 50 OHM CRIMP
All alternatives
View full reportTechnical parameters
Key specs
Connector styleBNC
GenderFemale
Impedance50 Ω
Max frequency4 GHzMax
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohms |
| Environment and package | |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Panel Mount |
| Operating Temperature | -55°C ~ 85°C |
| Package | Bulk |
| Other | |
| Base Product Number | 5413771 |
| Body Finish | Nickel |
| Body Material | Zinc |
| Cable Group | RG-58, 58A, 58B, 58C, Belden 88240 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp |
| Dielectric Material | Polymethylpentene (PMP) |
| Fastening Type | Bayonet Lock |
| Features | - |
| Housing Color | Silver |
| Includes | 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket, 1 Lockwasher, 1 Nut |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | - |
| Shield Termination | Crimp |
