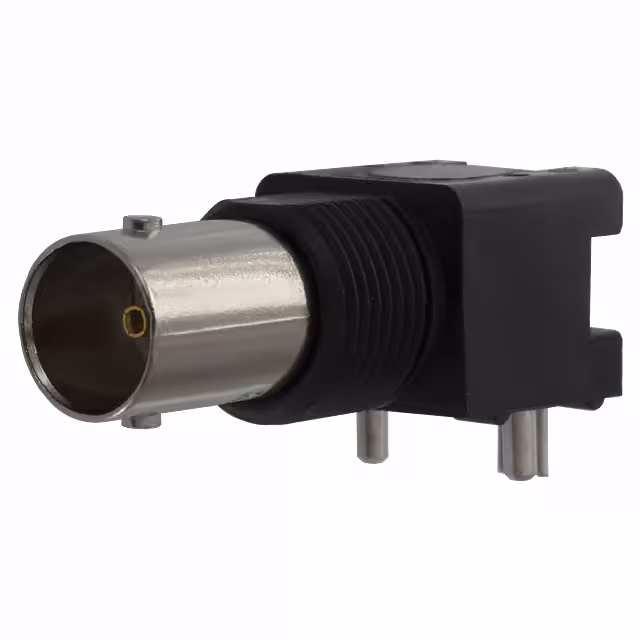

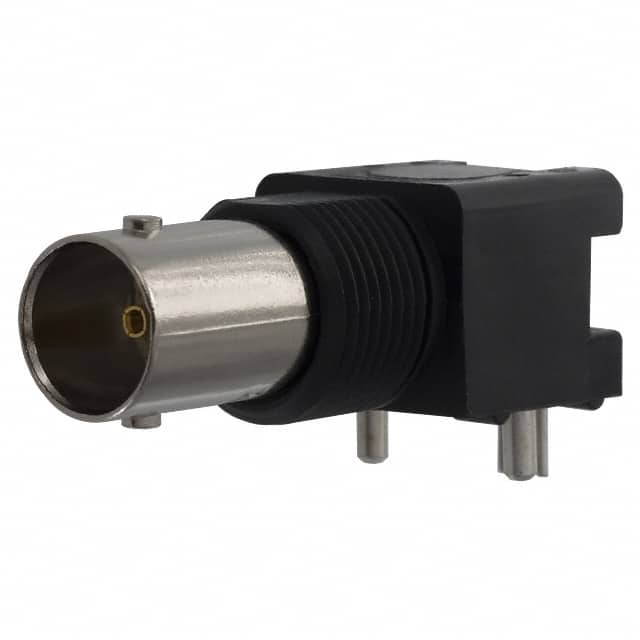

5413194-2
TE ConnectivitySwitzerland

5413194-2

ActiveCoaxial Connector (RF) Assemblies

CONN BNC JACK R/A 75 OHM PCB

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleBNC
GenderFemale
Impedance75 Ω
Max frequency2 GHzMax
Power
Voltage Rating500 V
AC and DC characteristics
Frequency - Max2 GHz
Impedance75Ohm
Environment and package
Mounting FeatureBulkhead - Front Side Nut
Mounting TypePanel Mount, Through Hole, Right Angle
Operating Temperature-55°C~85°C
PackageBulk
Other
Base Product Number5413194
Body FinishNickel
Body MaterialZinc
Cable Group-
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleBNC
Connector TypeJack, Female Socket
Contact TerminationSolder
Dielectric MaterialPolymethylpentene (PMP)
Fastening TypeBayonet Lock
FeaturesBoard Guide, Isolated
Housing ColorBlack, Silver
Includes-
Ingress Protection-
Insertion Loss-
Mating Cycles500
MfrTE Connectivity AMP Connectors
Number of Ports1
Product StatusActive
Series-
Shield TerminationSolder
