Bourns Inc.United States

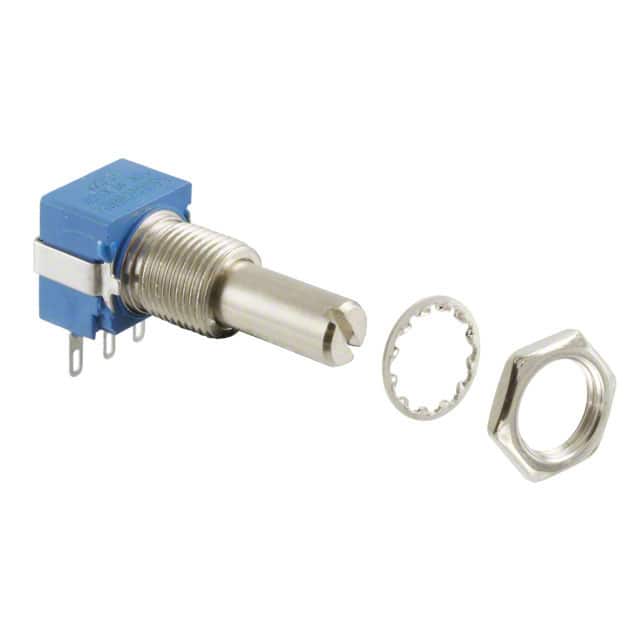

POT 10K OHM 1/2W PLASTIC LINEAR
All alternatives
View full reportTechnical parameters
Key specs
Tolerance20 %
Power500 mWMax
Turns1
| Power | |
|---|---|
| Power (Watts) | 0.5W, 1/2W |
| Environment and package | |
| Mounting Type | Panel Mount |
| Package | Bulk |
| Size - Body | Rectangular - 0.521" x 0.492" Face (13.25mm x 12.50mm) |
| Temperature Coefficient | ±1000ppm/°C |
| Other | |
| Actuator Diameter | 0.250" (6.35mm) |
| Actuator Length | 0.875" (22.23mm) |
| Actuator Type | Slotted |
| Adjustment Type | User Defined |
| Base Product Number | 53AAA |
| Built in Switch | None |
| Bushing Thread | 3/8-32 |
| Features | Sealed |
| Mfr | Bourns Inc. |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Product Status | Active |
| Resistance (Ohms) | 10k |
| Resistive Material | Conductive Plastic |
| Rotation | 290° |
| Series | Pro Audio 53 |
| Taper | Linear |
| Termination Style | Solder Lug |
| Tolerance | ±20% |
