5375
Pomona ElectronicsUnited States

5375

ObsoleteCoaxial Connector (RF) Assemblies

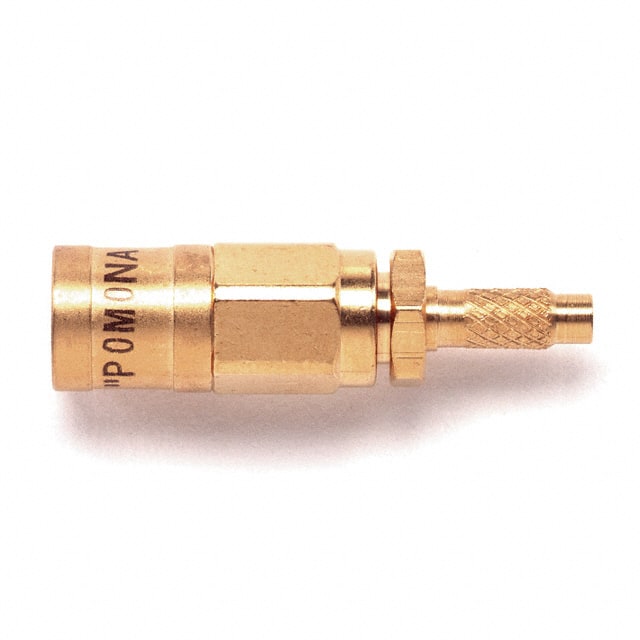

CONN SMB PLUG STR 50 OHM SOLDER

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Connector styleSMB
GenderFemale
Impedance50 Ω
Max frequency4 GHzMax
Power
Voltage Rating335 V
AC and DC characteristics
Frequency - Max4 GHz
Impedance50Ohm
Environment and package
Mounting Feature-
Mounting TypeFree Hanging (In-Line)
Operating Temperature-65°C~165°C
PackageBulk
Other
Base Product Number-
Body Finish-
Body MaterialBrass
Cable GroupRG-174, 179, 187, 188, 316
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleSMB
Connector TypePlug, Female Socket
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeSnap-On
Features-
Housing Color-
Includes7 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Ferrule, 2 Insulators, 1 Sleeve
Ingress Protection-
Insertion Loss-
Mating Cycles-
MfrPomona Electronics
Number of Ports1
Product StatusObsolete
Series-
Shield TerminationCrimp

Documents

No documents are linked to this part yet.
