Pomona ElectronicsUnited States

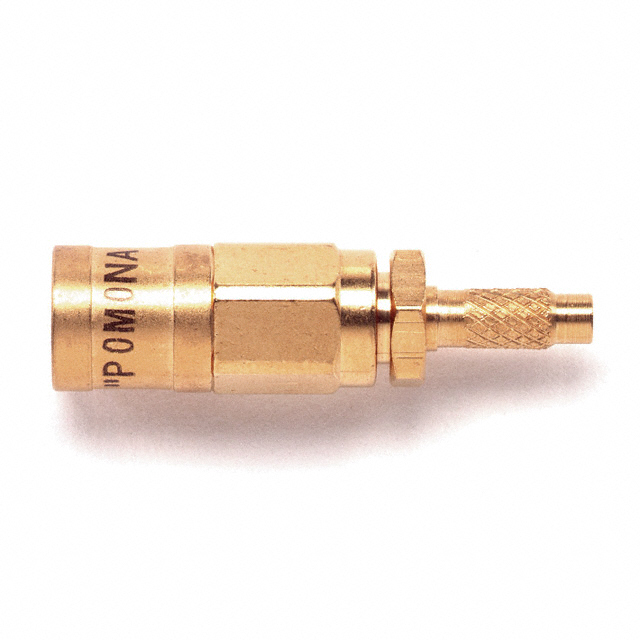

CONN SMB PLUG STR 50 OHM SOLDER
All alternatives
View full reportTechnical parameters
Key specs
Connector styleSMB
GenderFemale
Impedance50 Ω
Max frequency4 GHzMax
| Power | |
|---|---|
| Voltage Rating | 335 V |
| AC and DC characteristics | |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohms |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | -65°C ~ 165°C |
| Other | |
| Base Product Number | - |
| Body Finish | - |
| Body Material | Brass |
| Cable Group | RG-174, 179, 187, 188, 316 |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMB |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Features | - |
| Housing Color | - |
| Includes | 7 pcs - 1 Connector, 1 Clamp, 1 Contact, 1 Ferrule, 2 Insulators, 1 Sleeve |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | - |
| Mfr | Pomona Electronics |
| Number of Ports | 1 |
| Packaging | Bulk |
| Part Status | Obsolete |
| Series | - |
| Shield Termination | Crimp |
Documents
No documents are linked to this part yet.
