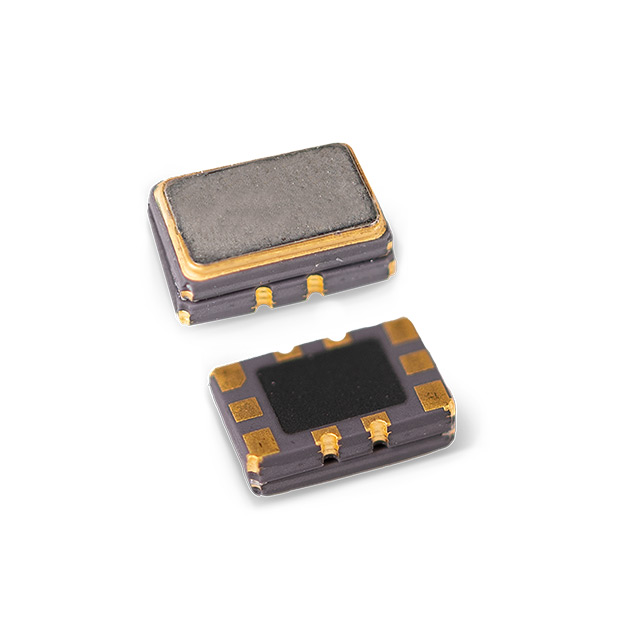

536
ActiveCTS Model 536 is a high performance Temperature Compensated Crystal Oscillator [TCXO] suitable for applications requiring tight stability, Stratum 3 performance and more. Employing IC technology with HCMOS output and analog temperature compensation engine; coupled with a fundamental quartz crystal M536 has excellent stability and low jitter/phase noise performance. Download the CTS components are stocked and sold through a global network of distributors & sales representatives. Select your preferred partner in the link below.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage (V) | 3.3V |
| AC and DC characteristics | |
| Frequency Range (MHz) | 10 - 50 |
| Frequency Stability (PPM) | ±0.10 / ±0.28 / ±0.50 |
| Environment and package | |
| Package (mm) | 5.0x3.2 SMD |
