TE ConnectivitySwitzerland

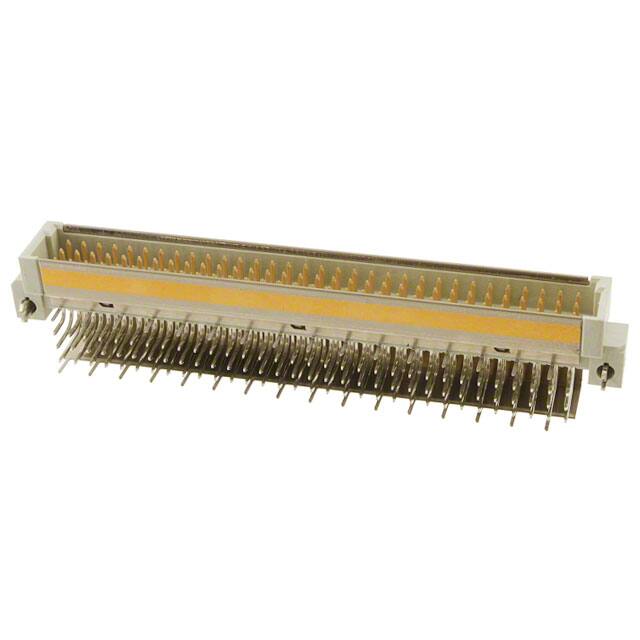

CONN DIN HDR 96POS PCB RA GOLD
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -55°C~125°C |
| Package | Bulk |
| Other | |
| Base Product Number | 536149 |
| Connector Type | Header, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Features | Board Lock, Shielded |
| Level, Class | 2 |
| Material Flammability Rating | - |
| Material - Insulation | Polymer Thermoplastic, Glass Filled |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 96 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Pitch | 0.100" (2.54mm) |
| Product Status | Active |
| Series | Eurocard |
| Style | C |
| Termination | Solder |
Documents
No documents are linked to this part yet.
