5344C

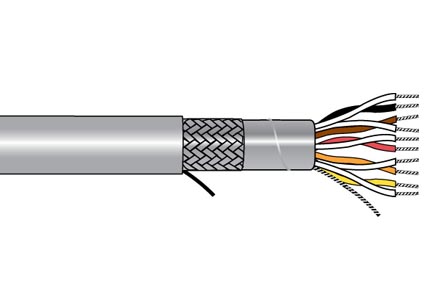

ActiveXtra-Guard 1 22 AWG 19 Conductor is a high performance PVC cable for general-purpose applications.
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| 1) Voltage Rating | 300 V RMS |
| AC and DC characteristics | |
| 4) Characteristic Impedance | 78 Ω |
| Environment and package | |
| 1) Temperature Range | -35 to 105°C |
| Other | |
| (1) Color Code | Alpha Wire Color Code B |
| 1) Component 1 | 19 X 1 PAIR |
| (1) Twists | 8.0 Twists/foot (min) |
| 1) UL | a) Component 1 |
| 2) Bend Radius | 10X Cable Diameter |
| 2) Cable Assembly | 19 Components Cabled |
| 2) Mutual Capacitance | 24.2 pF/ft @1 kHz, Nominal |
| 3) California Proposition 65 | This product may contain substances known to the State of California to cause Cancer or Reproductive Harm, but is exempt from labeling based on the Consent Judgement. See the Alpha Wire website for more information. |
| 3) Ground Capacitance | 44 pF/ft @1 kHz, Nominal |
| 3) IEC | EN 60332-1 Flame Behavior |
| 3) Pull Tension | 223 Lbs, Maximum |
| 3) Shield | A/P/A Tape, 20% Overlap, Min. |
| 4) CE | EU Low Voltage Directive 2014/35/EU |
| 4) Sunlight Resistance | Yes |
| 5) Inductance | 0.18 μH/ft, Nominal |
| 6) Conductor DCR | 16.6 Ω/1000ft @20°C, Nominal |
| 7) OA Shield DCR | 1.71 Ω/1000ft @20°C, Nominal |
| a) 1000 FT | 30 x 14 x 12 Continuous length |
| a) Color(s) | Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White |
| a) Drain Wire | 22 (7/30) AWG Tinned Copper |
| a) Twists | 2.0 Twists/foot (min) |
| AWM/STYLE 2343 | 80°C |
| b) 500 FT | 18 x 14.25 x 8 Continuous length |
| b) Braid | Tinned Copper,70% Coverage, Nom. |
| b) Orientation | Components to be arranged from INSIDE LAYER to OUTSIDE LAYER |
| b) Ripcord | 1 End 810 Denier Nylon |
| c) 100 FT | 18 x 9 x 8 Continuous length |
| c) Core Wrap | Nonwoven Polyester Tape, 20% Overlap, Min. |
| CM | 105°C |
| Color | WHITE-BLACK |
| c) Pair | 2/Cond Cabled Together |
| c) Print | ALPHA WIRE-* P/N 5344C 19PR 22 AWG XTRAGUARD(R) 1 SHIELDED (UL) TYPE CM 105C OR AWM 2343 80C 300V OR AWM 21895 105C 300V SUN RES 60C OIL VW-1 --- LLXXXXXX CSA 105C TYPE CMG FT4 CE ROHS (SEQ FOOTAGE) * = Factory Code [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.] |
| Electrical Properties | (For Engineering purposes only) |
| Packaging | Flange x Traverse x Barrel (inches) |
| Pair | 1 |
