Pomona ElectronicsUnited States

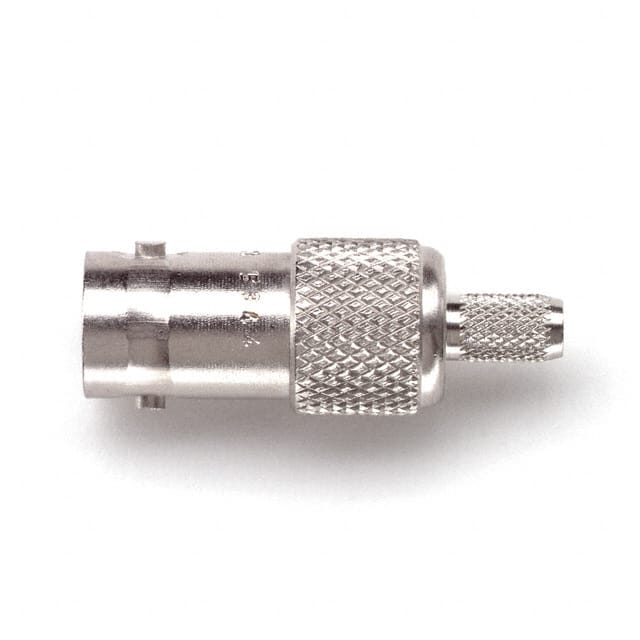

CONN BNC JACK STR 50 OHM CRIMP
All alternatives
View full reportTechnical parameters
Key specs
Connector styleBNC
GenderFemale
Impedance50 Ω
Max frequency4 GHzMax
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Frequency - Max | 4 GHz |
| Impedance | 50Ohm |
| Environment and package | |
| Mounting Feature | - |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature | - |
| Package | Bulk |
| Other | |
| Base Product Number | - |
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-58, 58A, 58C, 141, 141A |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Crimp or Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Features | - |
| Housing Color | Silver |
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | - |
| Mfr | Pomona Electronics |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | - |
| Shield Termination | Crimp |
