TE ConnectivitySwitzerland

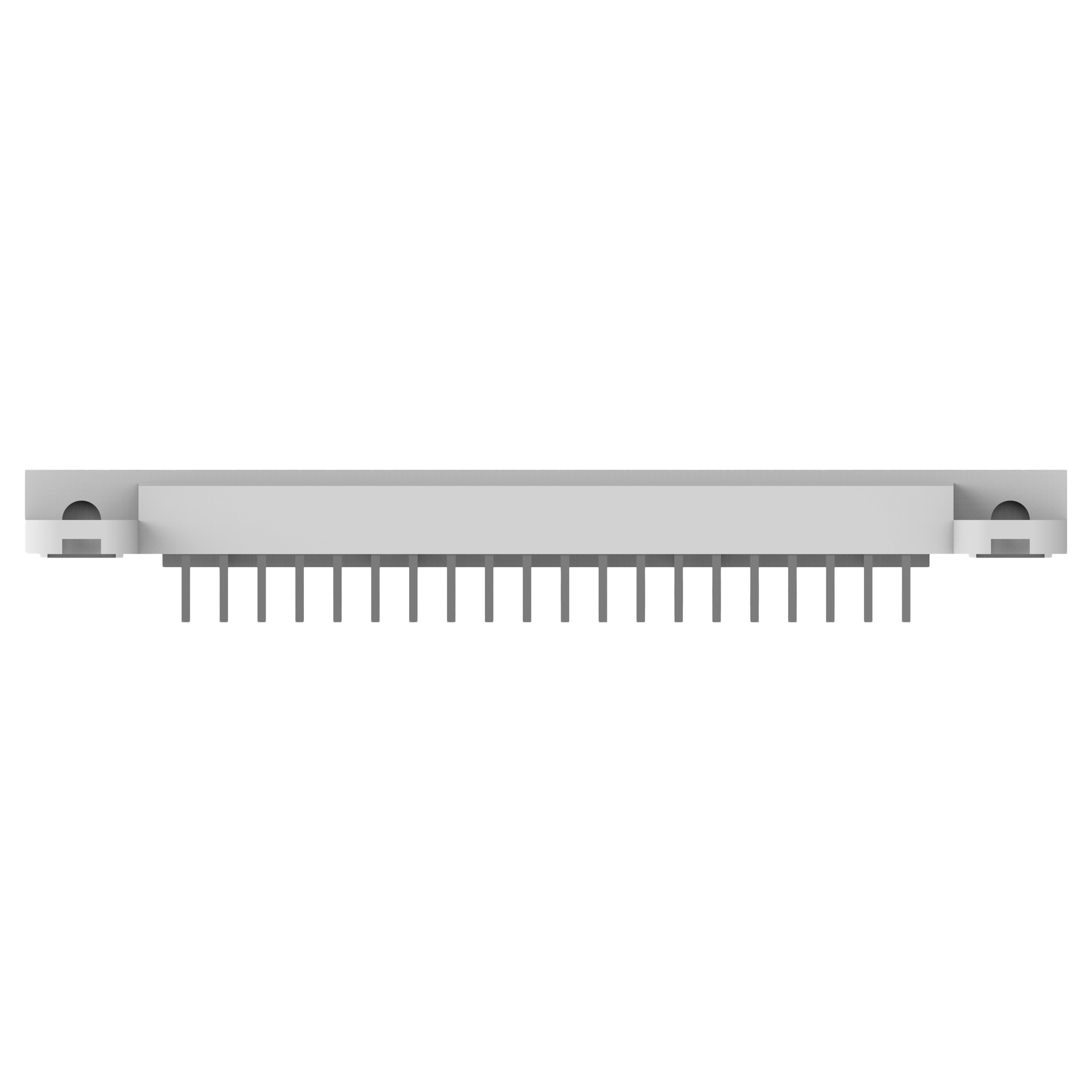

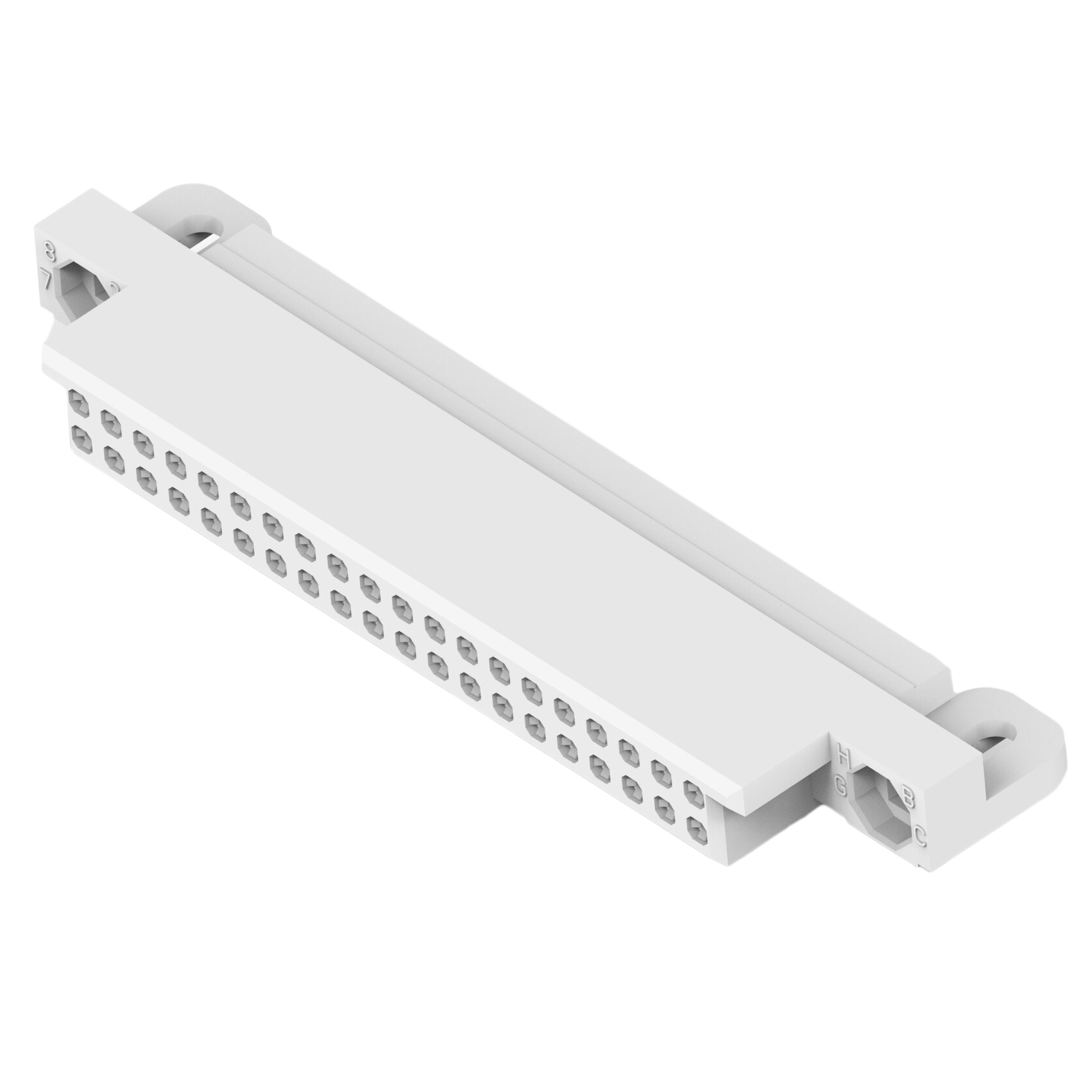

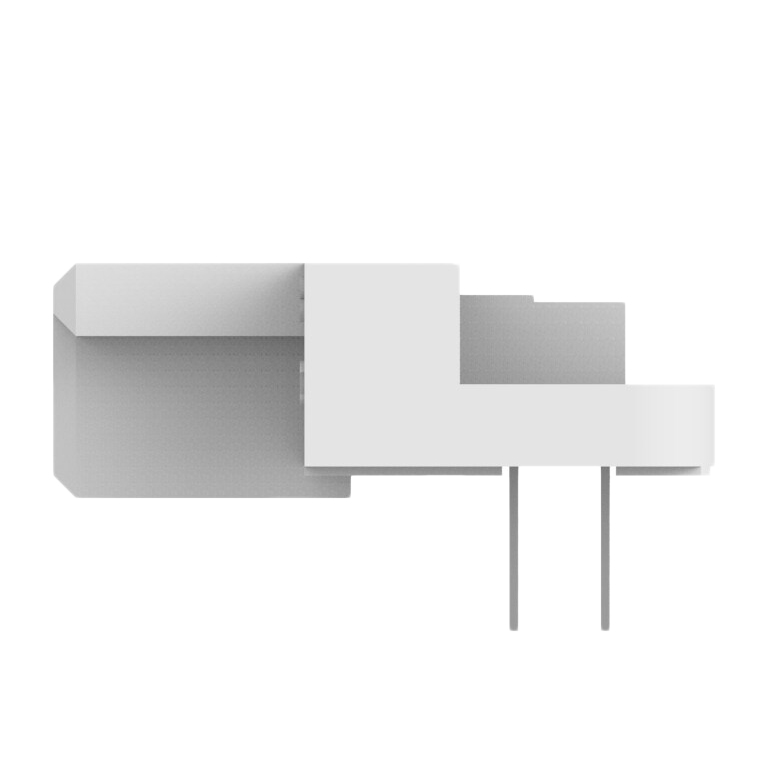

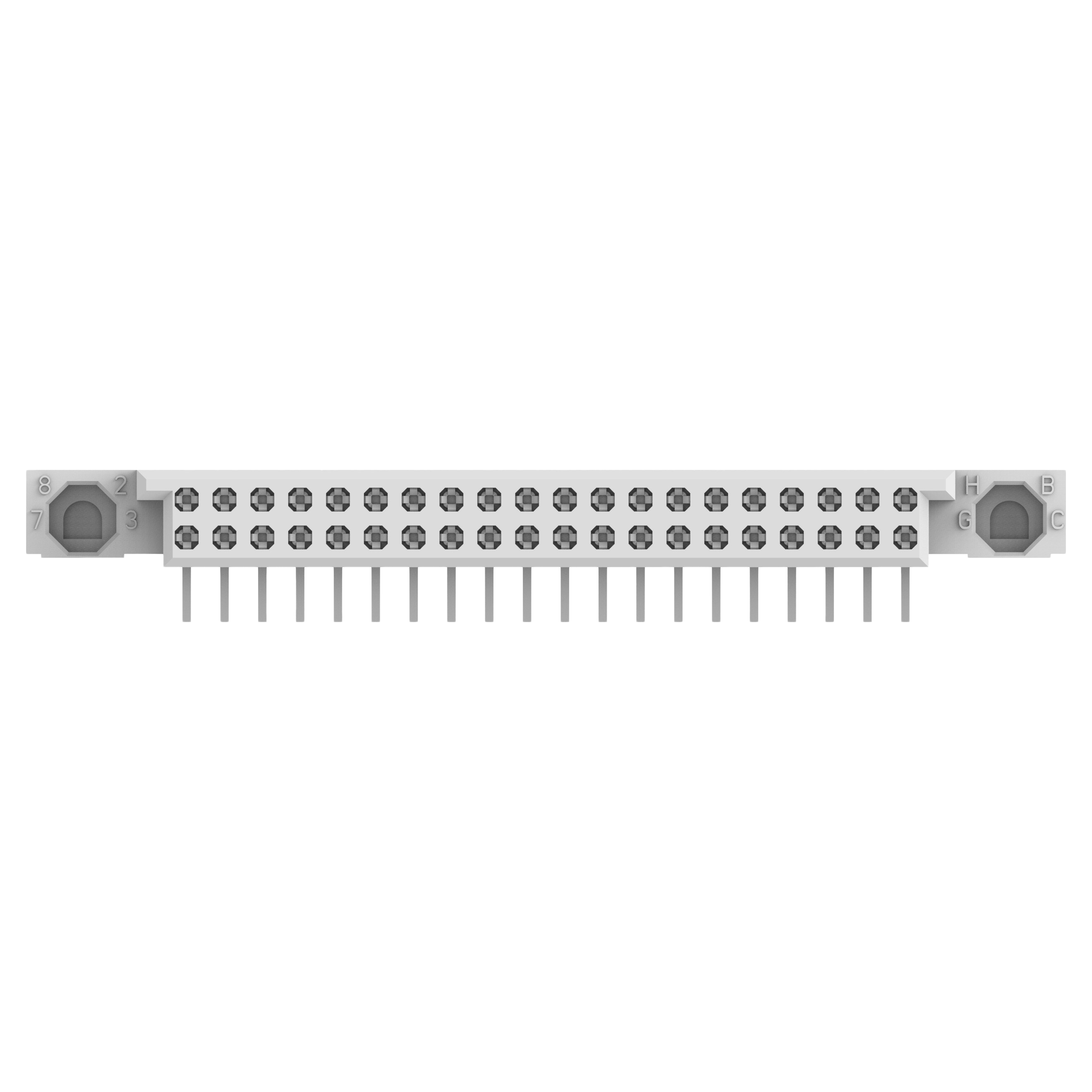

CONN RCPT HD 40POS PCB
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | - |
| Voltage Rating | - |
| Environment and package | |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature | -65°C ~ 125°C |
| Package | Bulk |
| Other | |
| Base Product Number | 532428 |
| Color | Natural |
| Connector Style | High Density (HDC, HDI, HPC) |
| Connector Type | Receptacle, Female Sockets |
| Connector Usage | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Layout, Typical | - |
| Features | - |
| Material Flammability Rating | UL94 V-0 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Columns | - |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Pitch | 0.100" (2.54mm) |
| Product Status | Active |
| Series | HDI (High Density Interconnect) |
| Termination | Solder |
