Aavid, Thermal Division of Boyd CorporationUnited States

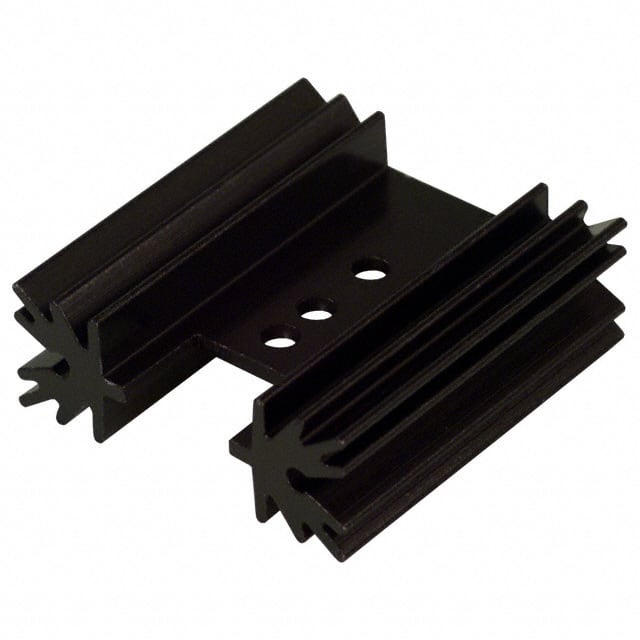

HEATSINK TO-220 H=1.5" BLK
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Fin Height | 0.500" (12.70mm) |
| Package | Box |
| Package Cooled | TO-220, TO-202 |
| Power Dissipation @ Temperature Rise | 7.0W@70°C |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 500 LFM |
| Thermal Resistance @ Natural | 10.40°C/W |
| Other | |
| Attachment Method | Bolt On |
| Base Product Number | 531102 |
| Diameter | - |
| Length | 1.500" (38.10mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Aavid, Thermal Division of Boyd Corporation |
| Product Status | Active |
| Series | - |
| Shape | Rectangular, Fins |
| Type | Board Level, Vertical |
| Width | 1.375" (34.93mm) |
