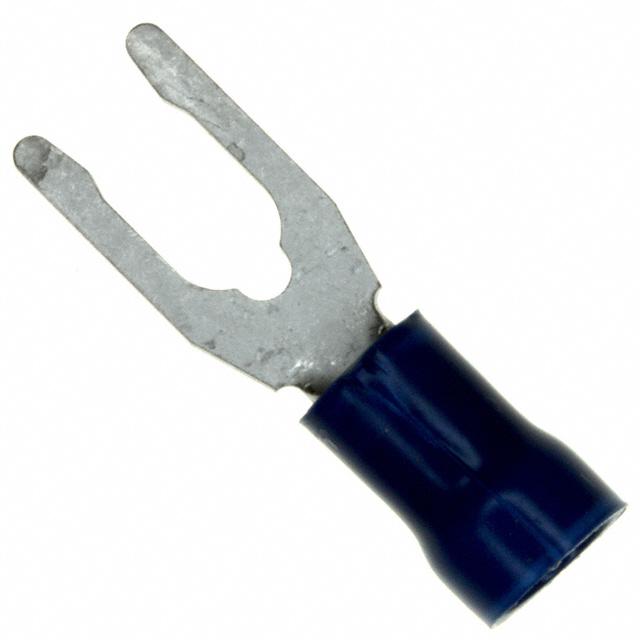

CONN SPADE TERM 14-16AWG #8 BLU
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Mounting Type | Free Hanging (In-Line) |
| Package | Bulk |
| Stud/Tab Size | 8 Stud |
| Other | |
| Base Product Number | 5246 |
| Color | Blue |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Features | Serrated Termination |
| Insulation | Insulated |
| Insulation Diameter | 0.118" ~ 0.193" (3.00mm ~ 4.90mm) |
| Length - Overall | 0.991" (25.17mm) |
| Length - Ring Center to Termination | 0.270" (6.86mm) |
| Length - Termination | 0.426" (10.82mm) |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Mfr | TE Connectivity AMP Connectors |
| Product Status | Active |
| Series | Plasti-Grip |
| Terminal Type | Spring, Snap |
| Termination | Crimp |
| Tongue Inside Opening | 0.164" (4.17mm) |
| Width - Outer Edges | 0.281" (7.14mm) |
| Wire Gauge | 14-16 AWG |
