Cully-MinerallacUnited States

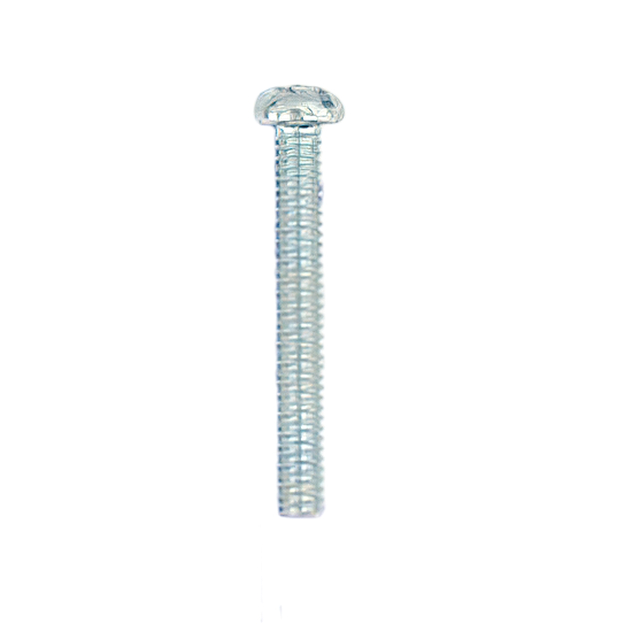

8-32 X 1-1/4 RHMS SLOT/PHIL ZI.
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Head Height | 0.114" (2.90mm) |
| Package | Box |
| Thread Size | #8-32 |
| Other | |
| Drive Type | Combination |
| Features | - |
| Head Diameter | 0.298" (7.57mm) |
| Length - Below Head | 1.250" (31.75mm) |
| Length - Overall | 1.364" (34.65mm) |
| Material | Steel |
| Mfr | Cully-Minerallac |
| Plating | Zinc |
| Product Status | Active |
| Screw Head Type | Round Head |
| Series | - |
| Type | Machine Screw |
Documents
No documents are linked to this part yet.
