TE ConnectivitySwitzerland

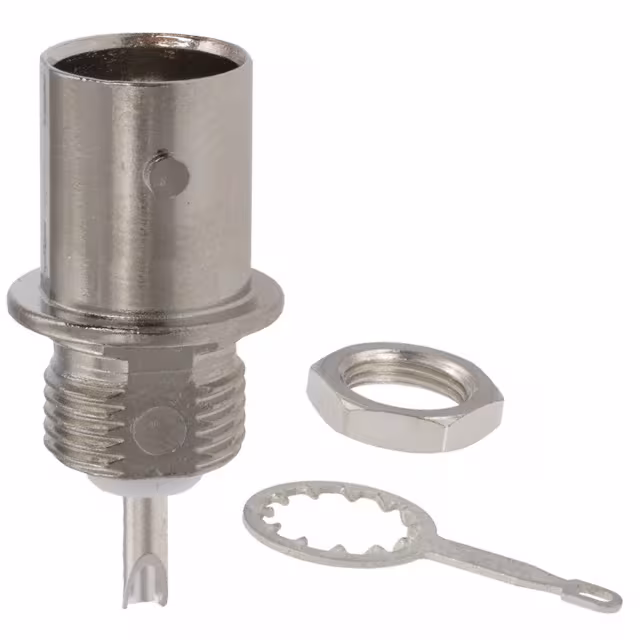

CONN BNC RCPT STR 75 OHM SOLDER
All alternatives
View full reportTechnical parameters
Key specs
Connector styleBNC
GenderFemale
Impedance75 Ω
Max frequency2 GHzMax
| Power | |
|---|---|
| Voltage Rating | 500 V |
| AC and DC characteristics | |
| Frequency - Max | 2 GHz |
| Impedance | 75Ohm |
| Environment and package | |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Mounting Type | Panel Mount |
| Operating Temperature | -65°C~165°C |
| Package | Bulk |
| Other | |
| Base Product Number | 5221244 |
| Body Finish | Nickel |
| Body Material | Zinc Die Cast |
| Cable Group | - |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Features | Extended Insulation |
| Housing Color | Silver |
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Ingress Protection | - |
| Insertion Loss | - |
| Mating Cycles | 500 |
| Mfr | TE Connectivity AMP Connectors |
| Number of Ports | 1 |
| Product Status | Obsolete |
| Series | - |
| Shield Termination | Solder Tag |
