TE ConnectivitySwitzerland

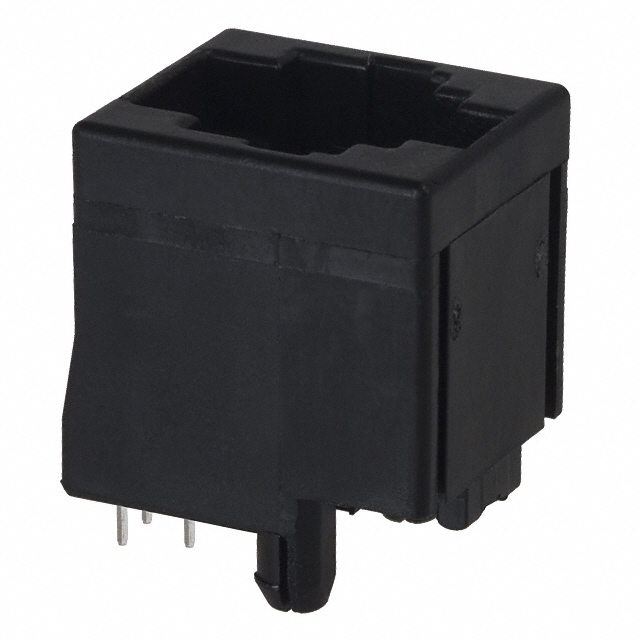

CONN MOD JACK 6P6C VERT UNSHLD
All alternatives
View full reportTechnical parameters
Key specs
Rows1
GenderFemale
| Environment and package | |
|---|---|
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Package | Tray |
| Other | |
| Base Product Number | 520258 |
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Material | Phosphor Bronze |
| Features | Board Lock, Panel Stops |
| Housing Material | Polybutylene Terephthalate (PBT), Polyester |
| Ingress Protection | - |
| LED Color | Does Not Contain LED |
| Mfr | TE Connectivity AMP Connectors |
| Number of Ports | 1 |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
| Number of Rows | 1 |
| Orientation | Vertical |
| Product Status | Obsolete |
| Ratings | Cat3 |
| Series | - |
| Shielding | Unshielded |
| Tab Direction | User Selectable |
| Termination | Solder |
Documents
No documents are linked to this part yet.
