Bourns Inc.United States

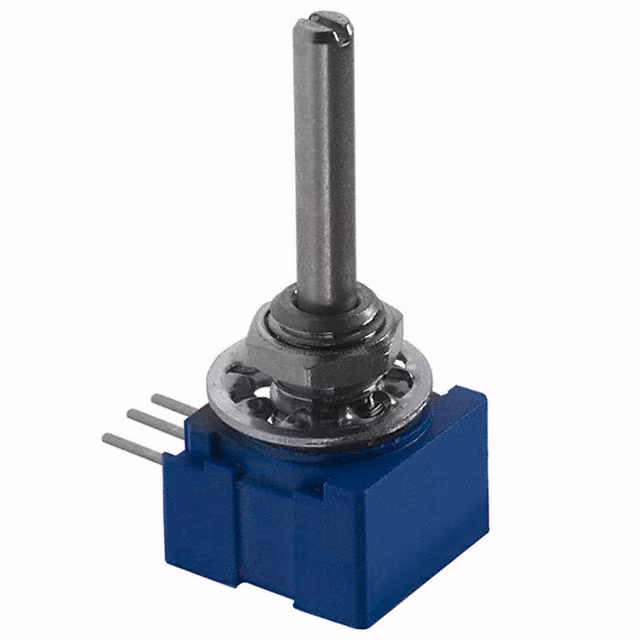

POT 100K OHM 1W CERMET LINEAR
All alternatives
View full reportTechnical parameters
Key specs
Tolerance10 %
Power1 WMax
Turns1
| Power | |
|---|---|
| Power (Watts) | 1W |
| Environment and package | |
| Mounting Type | Panel Mount |
| Package | Bulk |
| Size - Body | Rectangular - 0.521" x 0.492" Face (13.25mm x 12.50mm) |
| Temperature Coefficient | ±150ppm/°C |
| Other | |
| Actuator Diameter | 0.125" (3.18mm) |
| Actuator Length | 0.875" (22.23mm) |
| Actuator Type | Slotted |
| Adjustment Type | Side Adjustment |
| Base Product Number | 51CAD |
| Built in Switch | None |
| Bushing Thread | 1/4-32 |
| Features | Sealed |
| Mfr | Bourns Inc. |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Product Status | Obsolete |
| Resistance (Ohms) | 100k |
| Resistive Material | Cermet |
| Rotation | 290° |
| Series | Pro Audio 51 |
| Taper | Linear |
| Termination Style | PC Pins |
| Tolerance | ±10% |
