Keystone ElectronicsUnited States

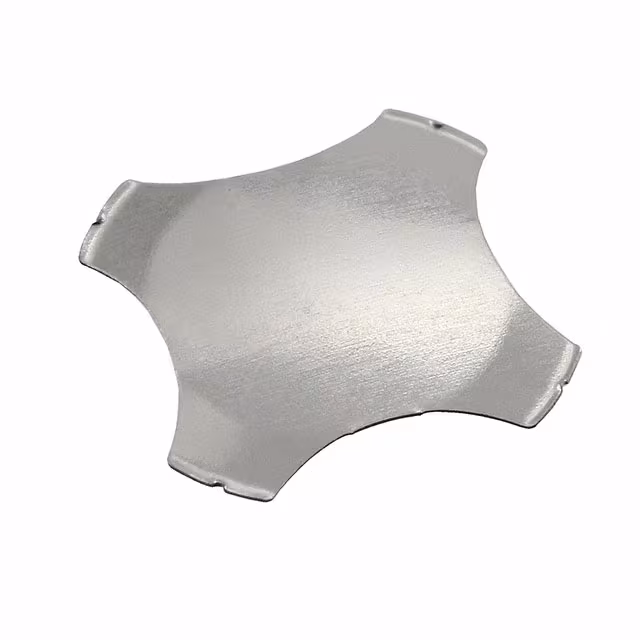

SWITCH TACTILE SPST-NO 12MA 24V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating12 mAMax · 24VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.012A @ 24VDC |
| Illumination Voltage (Nominal) | - |
| Environment and package | |
| Actuator Height off PCB, Vertical | 0.75mm |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~105°C |
| Package | Tube |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | - |
| Actuator Orientation | Top Actuated |
| Actuator Type | Snap Dome |
| Circuit | SPST-NO |
| Features | Flex Membrane |
| Illumination | Non-Illuminated |
| Illumination Type, Color | - |
| Ingress Protection | - |
| Mechanical Life | - |
| Mfr | Keystone Electronics |
| Operating Force | 340gf |
| Outline | 9.90mm x 9.90mm |
| Product Status | Active |
| Series | - |
| Switch Function | Off-Mom |
| Switch Travel | - |
| Termination Style | SMD (SMT) Tab |
