CMC 1.2A 2LN TH
All alternatives
View full reportTechnical parameters
Key specs
Number of lines2
Current rating1.2 AMax
DC resistance197 mΩMax
| Power | |
|---|---|
| Current Rating (Max) | 1.2A |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| Environment and package | |
| Height (Max) | 0.945" (24.00mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~125°C |
| Package | Tray |
| Package / Case | Vertical, 4 PC Pin |

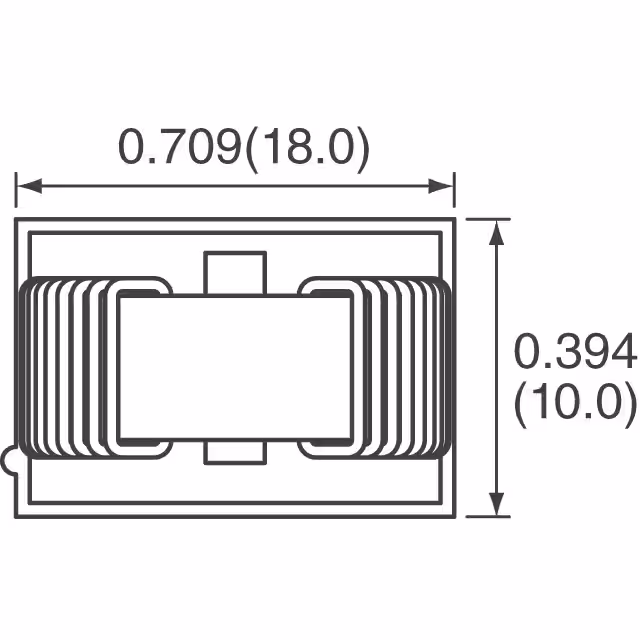

| Size / Dimension | 0.709" L x 0.394" W (18.00mm x 10.00mm) |
| Other | |
| Approval Agency | - |
| Base Product Number | 51 |
| DC Resistance (DCR) (Max) | 197mOhm |
| Features | - |
| Filter Type | Power Line |
| Mfr | Murata Power Solutions Inc. |
| Number of Lines | 2 |
| Product Status | Active |
| Ratings | - |
| Series | 5100 |
