TE ConnectivitySwitzerland

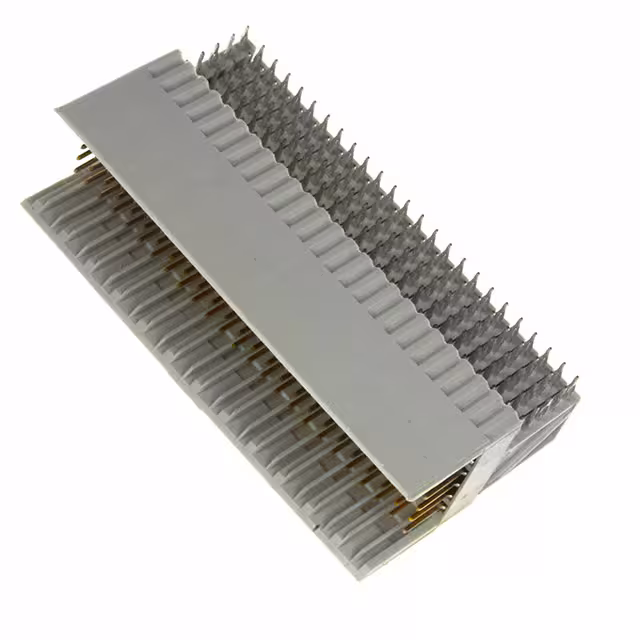

CONN HEADER 125POS 2MM PRESS-FIT
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 1.5 A |
| Voltage Rating | 500Vrms |
| Environment and package | |
| Mounting Type | Board Edge, Through Hole, Right Angle |
| Operating Temperature | -55°C~125°C |
| Package | Tray |
| Other | |
| Base Product Number | 5106014 |
| Connector Style | B 25 |
| Connector Type | Header, Male Pins |
| Connector Usage | Backplane |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Features | - |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions | 125 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Pitch | 0.079" (2.00mm) |
| Product Status | Active |
| Series | Z-PACK |
| Termination | Press-Fit |
Documents
No documents are linked to this part yet.
