507

High rating miniature PCB Relay.; AC & DC coil are both available.; UL/CUL and VDE approved.

All alternatives

1.	507 \| — \| Basic series designation
2.	Blank \| — \| Standard type
3.	Blank \| — \| Standard type (DC: 0.53 W) (AC: 0.75 VA)
4.	1A \| — \| Single pole normally open
5.	C \| — \| Contact material AgNi
6.	Blank \| — \| Standard type
7.	C \| — \| Flux tight
8.	Blank \| — \| Standard type
9.	□ \| — \| Coil voltage (please refer to the coil rating data for the availability)
AC	6 ~ 240V
介質耐壓	接點間 \| 1000VAC

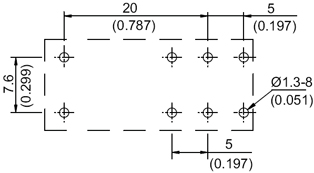

外形(長×寬×高) mm	29 × 12.5 × 15.7
接點形式	1A, 1C, 2A, 2C
接點與線圈間	5000VAC
接點額定	阻性負載 \| 12A 240VAC (507/N 1P),8A 240VAC (507/N 2P),10A 240VAC (N1),16A 240VAC(H/HN)
最大允許觸點電流 (A)	16A
極間	2P:(DC)3000, (AC)2500VAC
消耗功率	DC \| 0.53W, 0.40W, 0.25W
線圈電壓	DC \| 3 ~ 48V
電氣 (Min.)	1×105
預期壽命次數	機械 (Min.) \| DC: 3×107AC:(1P)1×107,(2P)5×106
