Aavid, Thermal Division of Boyd CorporationUnited States

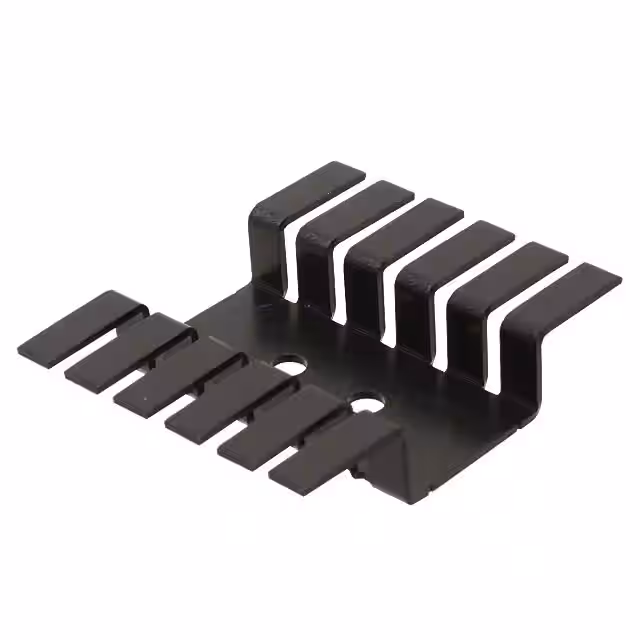

HEATSINK TO-220 DUAL 10W
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|

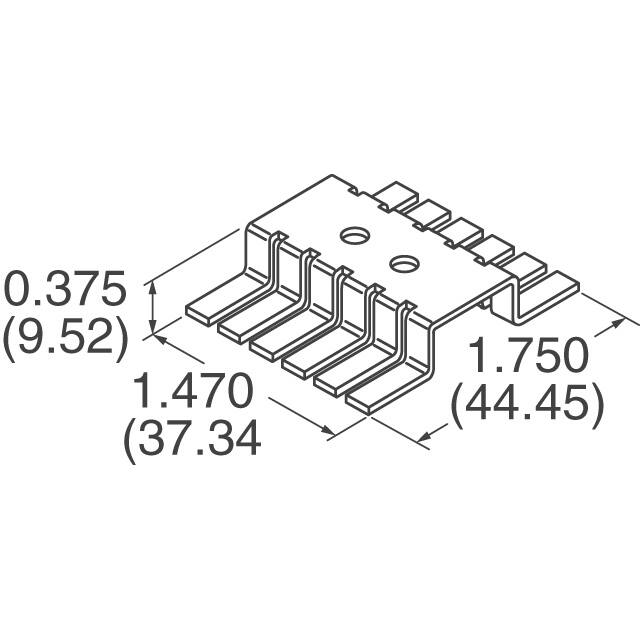

| Fin Height | 0.375" (9.52mm) |
| Package | Bag |
| Package Cooled | TO-220 |
| Power Dissipation @ Temperature Rise | 8.0W@70°C |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 200 LFM |
| Thermal Resistance @ Natural | 9.60°C/W |
| Other | |
| Attachment Method | Bolt On |
| Base Product Number | 507222 |
| Diameter | - |
| Length | 1.470" (37.34mm) |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Mfr | Aavid, Thermal Division of Boyd Corporation |
| Product Status | Active |
| Series | Hat Section 5070 |
| Shape | Rectangular, Fins |
| Type | Board Level |
| Width | 1.750" (44.45mm) |
