Alpha WireUnited States

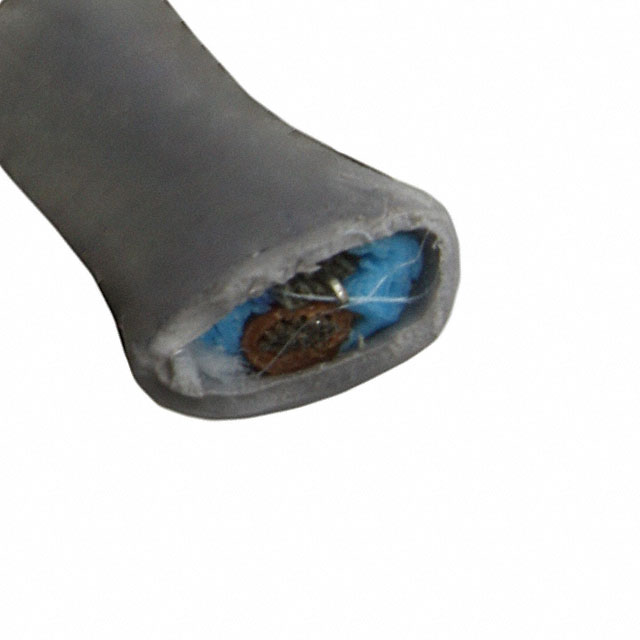

CABLE 2COND 16AWG SLATE 1000'
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Voltage | 300 V |
| Environment and package | |
| Operating Temperature | -35°C ~ 105°C |
| Package | Spool |
| Other | |
| Base Product Number | 5072/1C |
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand | 19/0.0117" |
| Features | Biological Compatibility, Rip Cord |
| Jacket Color | Slate |
| Jacket (Insulation) Diameter | 0.250" (6.35mm) |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.0320" (0.813mm) |
| Length | 1000.0' (304.8m) |
| Mfr | Alpha Wire |
| Number of Conductors | 2 |
| Product Status | Active |
| Ratings | ISO 10993, UL Style 2464 |
| Series | Xtra-Guard® 1 |
| Shield Coverage | - |
| Shield Material | - |
| Shield Type | - |
| Usage | Communication, Control |
| Wire Gauge | 16 AWG |
