OhmiteUnited States

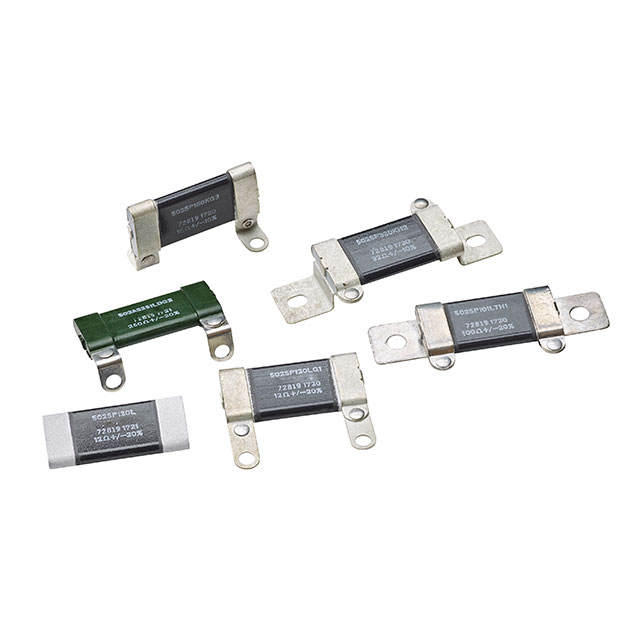

90W 800J 10 OHMS 10% SLAB
All alternatives
View full reportTechnical parameters
Key specs
Resistance10 Ω
Tolerance10 %
Power90 W
Temperature coefficient-800 ppm/°C
| Power | |
|---|---|
| Power (Watts) | 90W |
| Environment and package | |
| Height - Seated (Max) | 1.500" (38.10mm) |
| Mounting Feature | Brackets (not included) |
| Operating Temperature | -55°C ~ 350°C |
| Package | Box |
| Package / Case | Radial, Flat Oval |
| Size / Dimension | 6.000" L x 0.252" W (152.40mm x 6.40mm) |
| Temperature Coefficient | 0/ -800ppm/°C |
| Other | |
| Coating, Housing Type | - |
| Composition | Ceramic |
| Failure Rate | - |
| Features | Moisture Resistant, Non-Inductive, Pulse Withstanding |
| Lead Style | Solder Lugs |
| Mfr | Ohmite |
| Product Status | Active |
| Resistance | 10 Ohms |
| Series | 500 |
| Tolerance | ±10% |
