APEM Inc.France

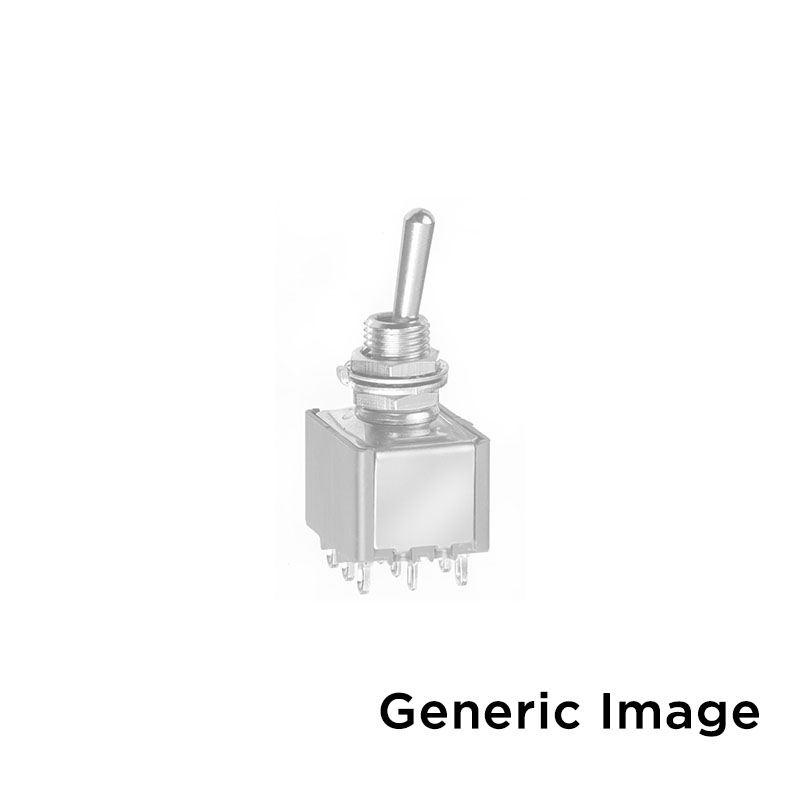

506 Contact Rating: Reliable performance for various applications. Ideal for ensuring secure connections in electrical systems.
All alternatives
View full reportTechnical parameters
| Environment and package | |
|---|---|
| Operating temperature | -40°C to +85°C |
| Other | |
| Contact bounce | 2 ms max. |
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame |
| Electrical life at full load | 50.000 cycles for single and double pole 40.000 cycles for 3 pole30.000 cycles for 4 pole |
| Electrical Specifications | For inductive, lamp or capacitive load, consult factory. |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Low level or mechanical life | 100.000 cycles |
| Number Of Poles | Four Poles |
| Panel thickness | 2,5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut |
| Terminals And Bushing | Straight PC Terminals |
| Torque | 1,25 Nm (.922 Ft.lb) max. applied to nut |
