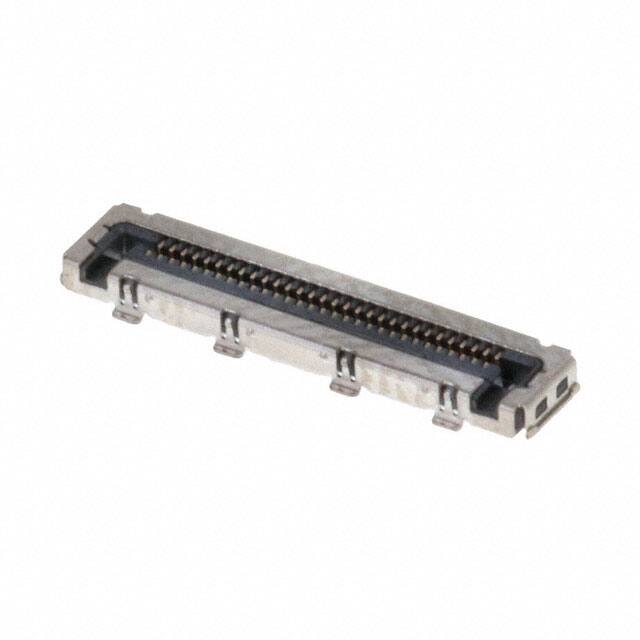

CONN RCPT 30POS 0.016 GOLD SMD
All alternatives
View full reportTechnical parameters
Key specs
Positions30
Rows1
Pitch400 µm
GenderFemale
Current rating200 mAMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.2A per Contact |
| Voltage Rating | 30V |
| Environment and package | |
| Insulation Height | 0.049" (1.25mm) |
| Mated Stacking Heights | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C~75°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Other | |
| Applications | General Purpose, Medical |
| Base Product Number | 501083 |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish Thickness - Post | 16.0µin (0.41µm) |
| Contact Length - Post | - |
| Contact Material | Copper Alloy |
| Contact Shape | - |
| Contact Type | Center Strip Contact |
| Fastening Type | Detent Lock |
| Features | Shielded, Solder Retention |
| Ingress Protection | - |
| Insulation Color | Black |
| Insulation Material | Plastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mfr | Molex |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.016" (0.40mm) |
| Product Status | Obsolete |
| Row Spacing - Mating | - |
| Series | 501083 |
| Style | Board to Cable/Wire |
| Termination | Solder |
