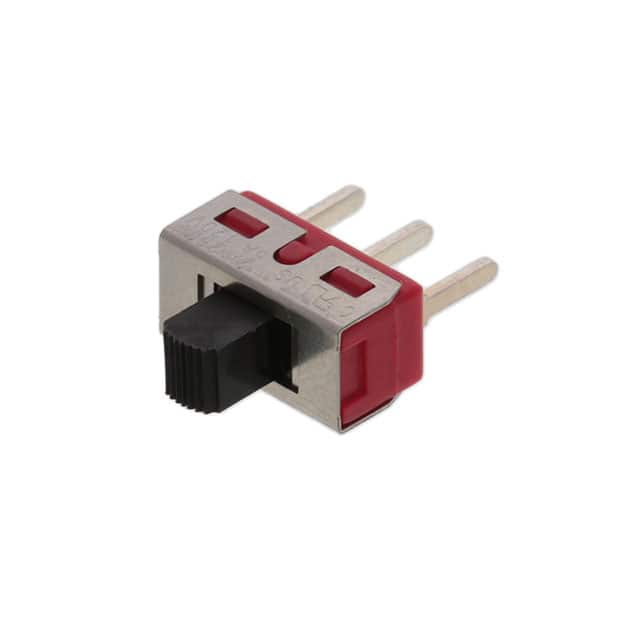

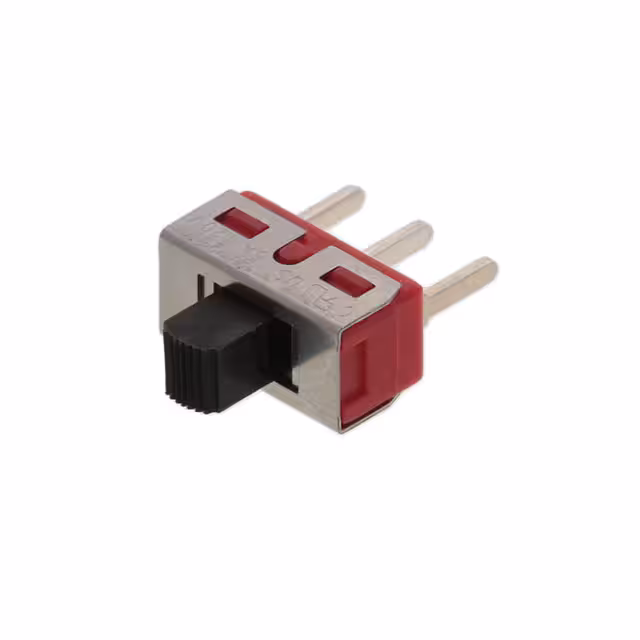

SWITCH SLIDE SPDT 5A 120V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPDT
Switch functionOn-Off-On
Current rating5 AMax
Voltage rating120 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 5A (AC/DC) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -30°C~85°C |
| Package | Bulk |
| Other | |
| Actuator Length | 5.08mm |
| Actuator Material | Polyamide (PA), Nylon |
| Actuator Type | Standard |
| Base Product Number | 500SSP3 |
| Circuit | SPDT |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Contact Timing | Not Specified |
| Electrical Life | 30,000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 30,000 Cycles |
| Mfr | E-Switch |
| Operating Force | - |
| Product Status | Active |
| Series | 500 |
| Switch Function | On-Off-On |
| Switch Travel | 2.16mm |
| Termination Style | PC Pin |
