E-SwitchUnited States

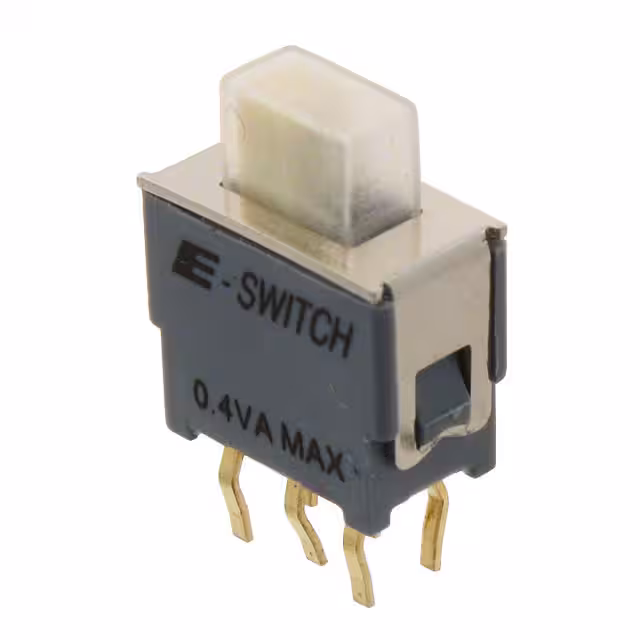

SWITCH SLIDE DPDT 0.4VA 20V
All alternatives
View full reportTechnical parameters
Key specs
CircuitDPDT
Switch functionOn-On
Voltage rating20 VMax
| Power | |
|---|---|
| Current Rating (Amps) | 0.4VA (AC/DC) |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C~80°C |
| Package | Tray |
| Other | |
| Actuator Length | 2.80mm |
| Actuator Material | - |
| Actuator Type | Standard |
| Base Product Number | 500RDP1 |
| Circuit | DPDT |
| Contact Finish | - |
| Contact Material | - |
| Contact Timing | Not Specified |
| Electrical Life | 40,000 Cycles |
| Features | Epoxy Sealed Terminals, IP57 |
| Mechanical Life | 40,000 Cycles |
| Mfr | E-Switch |
| Operating Force | 200gf |
| Product Status | Active |
| Series | 500R |
| Switch Function | On-On |
| Switch Travel | 1.90mm |
| Termination Style | PC Pin |
Documents
No documents are linked to this part yet.
