5-555175-3
TE ConnectivitySwitzerland

5-555175-3

ObsoleteModular Connector Plugs

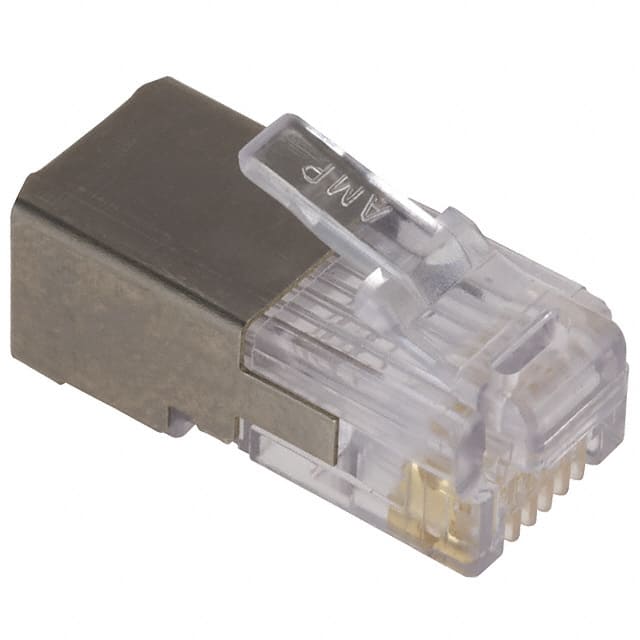

CONN MOD PLUG 6P6C SHIELDED

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Power
Voltage Rating-
Environment and package
PackageBulk
Other
Base Product Number555175
Cable TypeRound Cable, Stranded Wires
ColorTranslucent - Clear
Connector TypePlug
Contact FinishGold
Contact Finish Thickness50.0µin (1.27µm)
Contact MaterialPhosphor Bronze
Features-
Housing MaterialPolycarbonate (PC)
Ingress Protection-

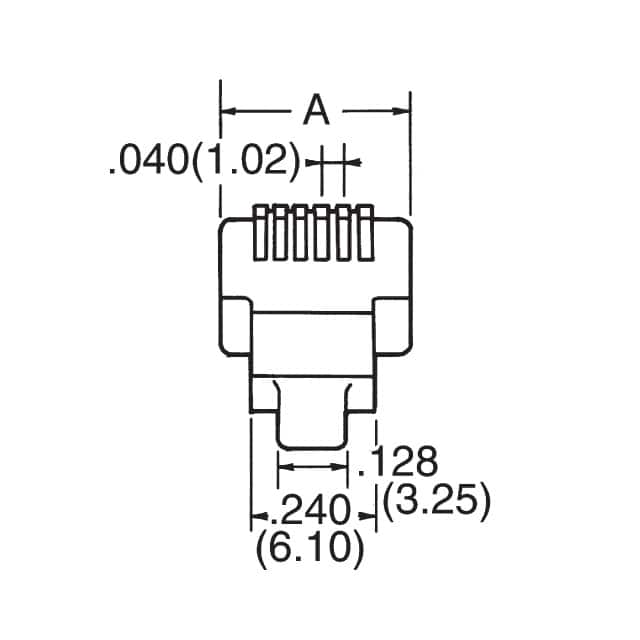

Length0.910" (23.11mm)
MfrTE Connectivity AMP Connectors
Number of Positions/Contacts6p6c (RJ11, RJ12, RJ14, RJ25)
Product StatusObsolete
RatingsCat3
Series-
ShieldingShielded
Shield MaterialCopper Alloy
TerminationIDC
Wire Gauge26-28 AWG

Documents

No documents are linked to this part yet.
