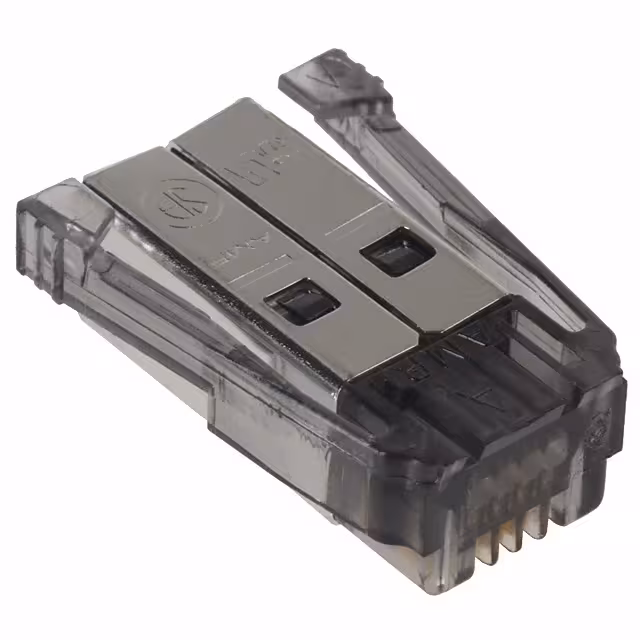

CONN PLUG FLAT 4 CONDUCTOR SDL
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current Rating (Amps) | 1.5 A |
| Voltage Rating | 30V |
| Environment and package | |
| Package | Bulk |
| Other | |
| Base Product Number | 520423 |
| Cable Type | Flat Cable |
| Color | Clear, Gray |
| Connector Type | SDL, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Material | Copper Alloy |
| Features | Keyed |
| Housing Material | Polycarbonate (PC) |
| Ingress Protection | - |
| Length | 0.890" (22.61mm) |
| Mfr | TE Connectivity AMP Connectors |
| Number of Positions/Contacts | 4 Positions |
| Product Status | Obsolete |
| Ratings | - |
| Series | 50 |
| Shielding | Shielded |
| Shield Material | Brass |
| Termination | Crimp |
| Wire Gauge | 24 AWG |
