Everlight Electronics Co LtdTaiwan, China

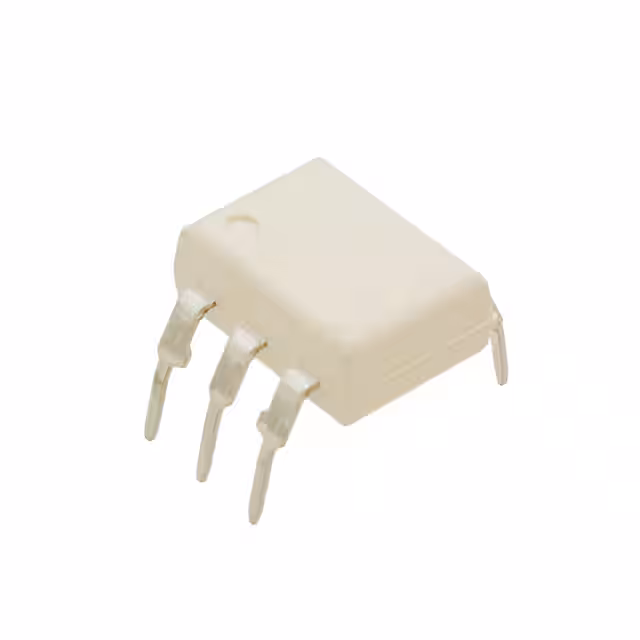

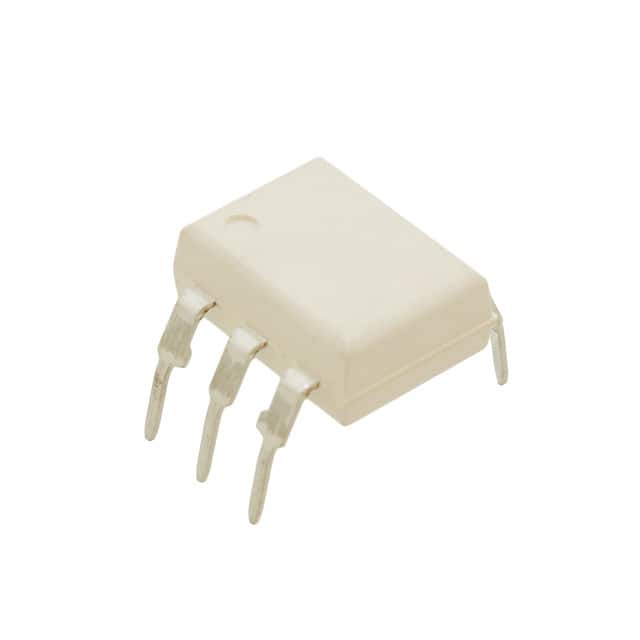

OPTOISO 5KV TRANS W/BASE 6DIP
All alternatives
View full reportTechnical parameters
Key specs
Channels1
Isolation voltage5 kV
Output typeTransistor
Current transfer ratio100 %10mA
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 60 mA |
| Current - Output / Channel | - |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Output (Max) | 80V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | - |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C~110°C |
| Package | Tube |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Other | |
| Input Type | DC |
| Mfr | Everlight Electronics Co Ltd |
| Output Type | Transistor with Base |
| Product Status | Active |
| Series | - |
| Turn On / Turn Off Time (Typ) | 10µs, 9µs |
| Vce Saturation (Max) | 300mV |
