Isocom Components 2004 LTDUnited Kingdom

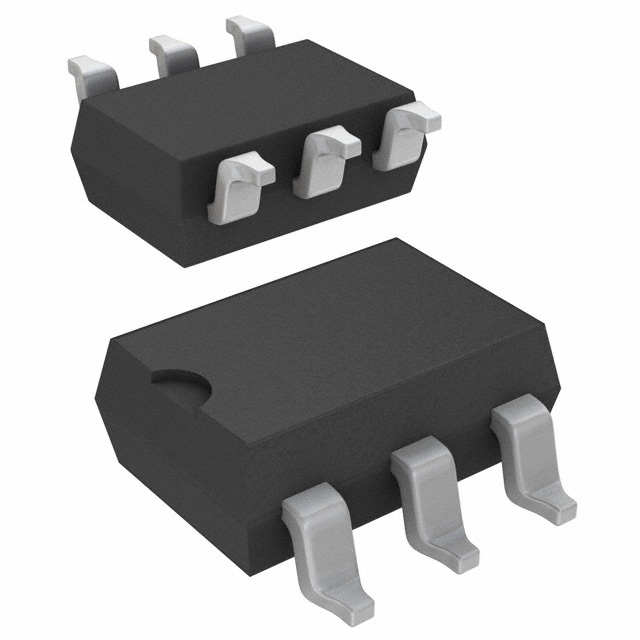

6PIN DARLINGTON OUTPUT, SINGLE,
All alternatives
View full reportTechnical parameters
Key specs
Channels1
Isolation voltage5.3 kV
Output typeDarlington
| Power | |
|---|---|
| Current - DC Forward (If) (Max) | 80 mA |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | - |
| Current Transfer Ratio (Min) | - |
| Number of Channels | 1 |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Voltage - Isolation | 5300Vrms |
| Voltage - Output (Max) | 30V |
| AC and DC characteristics | |
| Rise / Fall Time (Typ) | - |
| Environment and package | |
| Grade | - |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 100°C |
| Package / Case | 6-SMD (0.300", 7.62mm) |
| Qualification | - |
| Supplier Device Package | 6-SMD |
| Other | |
| Input Type | DC |
| Manufacturer | Isocom Components 2004 LTD |
| Output Type | Darlington with Base |
| Packaging | Tube |
| Part Status | Active |
| Series | 4N32 |
| Turn On / Turn Off Time (Typ) | 5µs, 100µs (Max) |
| Vce Saturation (Max) | 1V |
