4CL64R5-3-CD-PIN
PreliminaryPlanar Monolithics (PMI) Model 4CL64R5-3-CD-PIN is a combline bandpass filter centered at 0.064512 GHz with a 0.003 GHz bandwidth that features high out of band rejection and low passband insertion loss. Package size is 0.310" x 0.310" x TBD with solder pins.
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| 3 dB Bandwidth | 0.003 (5 %) Min |
| Bandwidth (GHz) | 0.003 (5 %) Min |
| Center Frequency (GHz) | 0.064512 |
| Impedance | 50 Ohm (Input/Output) |
| Passband Ripple | 1 dB Max |
| Environment and package | |

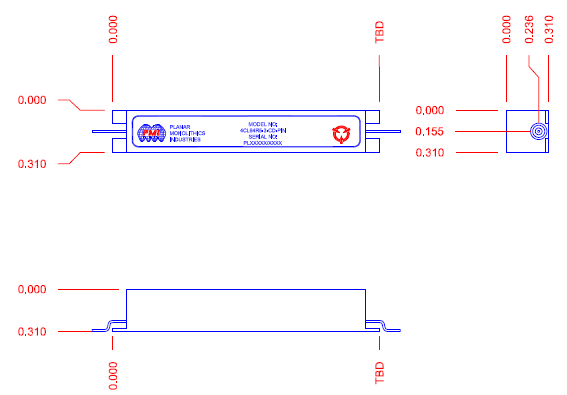

| Size | 0.310" x 0.310" x TBD |
| Temperature | -40 ºC to +85 ºC Operating |
| Temperature Cycle | MIL-STD-202F, Method 107D Cond. A |
| Other | |
| Altitude | MIL-STD-202F, Method 105C Cond. B |
| Connectors | PIN |
| Export Classification (ECCN) | EAR99 |
| Finish | Gold Plated |
| Humidity | MIL-STD-202F, Method 103B Cond. B |
| Insertion Loss (dB) | 2.5 dB Max |
| Rejection | -62 dB Max above 0.129 GHz, -60 dB Max. @ 0.129 GHz, -75 dB Max. @ 0.0325 GHz |
| Shock | MIL-STD-202F, Method 213B Cond. B |
| Status | Preliminary |
| Vibration | X, Y, Z Axes, 6 Grms, 10 Min. |
| VSWR | 1.35:1 Max |
