4CL3G-2G-CD-SFF
Quantic EvansUnited States

4CL3G-2G-CD-SFF

Active

Quantic PMI Model 4CL3G-2G-CD-SFF is a Combline Bandpass Filter that has a center frequency of 3 GHz and a Passband of 2 GHz. The passband insertion loss is 1 dB with 4 Pole Response rejection. The filter measures 1.5" x 0.7" x 0.85" and is supplied with SMA Female connectors.

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Bandwidth (GHz)2
Center Frequency (GHz)3
Environment and package
Size1.5" x 0.7" x 0.85"
Temperature-40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating
Temperature CycleMIL-STD-202F, Method 107D Cond. A
Other
AltitudeMIL-STD-202F, Method 105C Cond. B
ConnectorsSMA Female / Female
Export Classification (ECCN)EAR99
HumidityMIL-STD-202F, Method 103B Cond. B
Insertion Loss (dB)1 dB
Rejection4 Pole Response
ShockMIL-STD-202F, Method 213B Cond. B
StatusActive
VibrationMIL-STD-202F, Method 204D Cond. B
VSWR1.5:1 Max

Documents

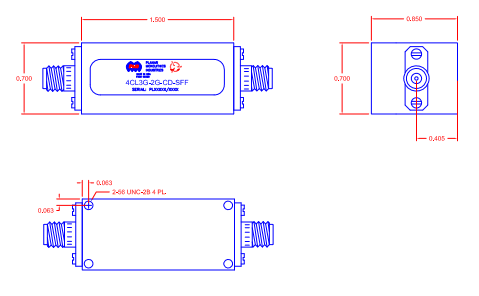

Package DrawingPackage Drawing · 156.0 KB · 2026-09-24OtherOther · 19.1 KB · 2026-09-24
