4CL15G-6G-CD-SFF
Quantic EvansUnited States

4CL15G-6G-CD-SFF

Active

Quantic PMI Model 4CL15G-6G-CD-SFF is a bandpass filter centered at 15 GHz with a nominal bandwidth of 6 GHz. Package size is 0.805" x 0.478" x 0.463" with SMA female connectors in and out.

See alternativesAsk AI FAEDatasheet PDF

All alternatives

View full report

Technical parameters

AC and DC characteristics
Bandwidth (GHz)6
Center Frequency (GHz)15
Environment and package
Size0.805" x 0.478" x 0.463"
Temperature-40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating
Temperature CycleMIL-STD-202F, Method 107D Cond. A
Other
AltitudeMIL-STD-202F, Method 105C Cond. B
ConnectorsSMA Female
Export Classification (ECCN)EAR99
HumidityMIL-STD-202F, Method 103B Cond. B
Insertion Loss (dB)1 dB
Rejection4 Pole Response
ShockMIL-STD-202F, Method 213B Cond. B
StatusActive
VibrationMIL-STD-202F, Method 204D Cond. B
VSWR2.0:1 Max

Documents

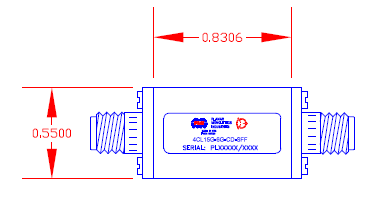

Package DrawingPackage Drawing · 150.3 KB · 2026-09-24
