4CL10G-4G-CD-SFF

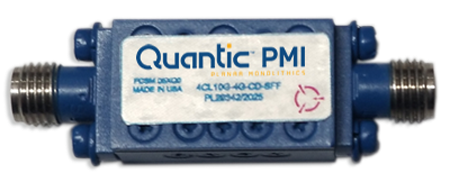

ActiveQuantic PMI Model 4CL10G-4G-CD-SFF is a bandpass filter centered at 10 GHz with a nominal bandwidth of 4 GHz. Package size is 0.805" x 0.478" x 0.413" with SMA female connectors.
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Bandwidth (GHz) | 4 |
| Center Frequency (GHz) | 10 |
| Environment and package | |
| Size | 0.805" x 0.478" x 0.413" |
| Temperature | -40 ºC to +85 ºC Operating, -40 ºC to +100 ºC Non-Operating |
| Temperature Cycle | MIL-STD-202F, Method 107D Cond. A |
| Other | |
| Altitude | MIL-STD-202F, Method 105C Cond. B |
| Connectors | SMA Female / Female |
| Export Classification (ECCN) | EAR99 |
| Humidity | MIL-STD-202F, Method 103B Cond. B |
| Insertion Loss (dB) | 1 dB |
| Rejection | 4 Pole Response |
| Shock | MIL-STD-202F, Method 213B Cond. B |
| Status | Active |
| Vibration | MIL-STD-202F, Method 204D Cond. B |
| VSWR | 1.5:1 - Measured 1.377:1 |
