4BP160-40-2A-PP

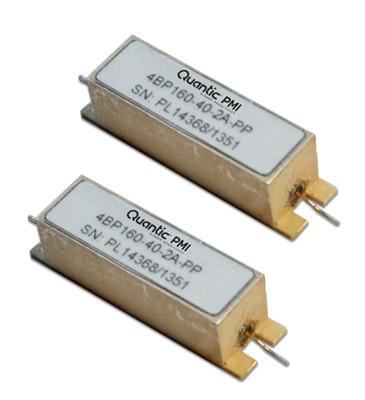

ActiveQuantic PMI Model 4BP160-40-2A-PP is an LC Bandpass filter centered at 0.16 GHz. Package size of 1.2" x 0.31" x 0.31" with PC Pins in and out.
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Bandwidth (GHz) | 0.04 ±5% |
| Center Frequency (GHz) | 0.16 |
| Environment and package | |
| Non-Operating Temperature | -65 °C to +125 °C |
| Size | 1.20" x 0.31" x 0.31" |
| Temperature | -55 °C to +85 °C |
| Temperature Cycle | MIL-STD-202F, Method 107 |
| Other | |
| Altitude | MIL-STD-202F, Method 105C Cond. B |
| Connectors | PC Pins |
| Export Classification (ECCN) | EAR99 |
| Fungus | MIL-STD-810C, Method 508.2 |
| Humidity | MIL-STD-202F, Method 103B Cond. B |
| Insertion Loss (dB) | 3 dB |
| Insertion Loss (Pass Band) | 3 dB Typ |
| Rejection | 4 Section Response |
| Salt Fog | MIL-STD-202F, Method 107D Cond. A |
| Shock | MIL-STD-202F, Method 213B Cond. B |
| Status | Active |
| Vibration | MIL-STD-202F, Method 204D Cond. B |
| VSWR in the Pass Band | 1.5:1 Max |
