4BP160-4-2A-PP

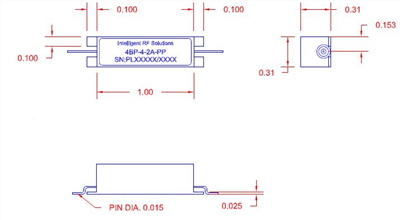

PreliminaryPlanar Monolithics (PMI) Model 4BP160-4-2A-PP is a band pass filter centered at 0.16 GHz with a nominal bandwidth of 0.004 MHz, ± 5%. Package size is 1.20" x 0.31" x 0.31" with PC pins connectors in and out.
All alternatives
View full reportTechnical parameters
| AC and DC characteristics | |
|---|---|
| Bandwidth (GHz) | 0.004 ± 5% |
| Center Frequency (GHz) | 0.16 |
| Environment and package | |
| Non-Operating Temperature | -40 °C to +100 °C |
| Size | 1.20" x 0.31" x 0.31" |
| Temperature | -40 °C to +85 °C |
| Temperature Cycle | MIL-STD-202F, Method 107D Cond. A |
| Other | |
| Altitude | MIL-STD-202F, Method 105C Cond. B |
| Connectors | PC Pins |
| Export Classification (ECCN) | EAR99 |
| Humidity | MIL-STD-202F, Method 103B Cond. B |
| Insertion Loss (dB) | 10 dB Typ |
| Insertion Loss (Pass Band) | 10 dB Typ |
| Rejection | 4 Section Response |
| Shock | MIL-STD-202F, Method 213B Cond. B |
| Status | Preliminary |
| Vibration | MIL-STD-202F, Method 204D Cond. B |
| VSWR in the Pass Band | 1.5:1 Max |
