MEC SwitchesDenmark

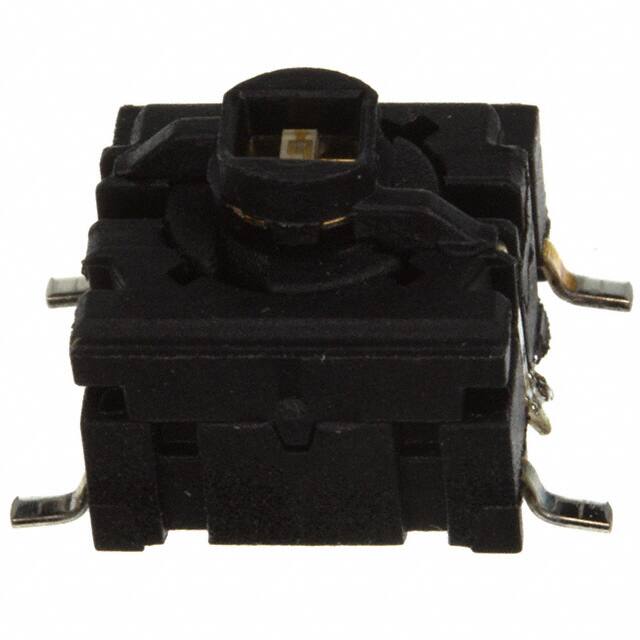

SWITCH TACTILE SPST-NO 0.05A 24V
All alternatives
View full reportTechnical parameters
Key specs
CircuitSPST-NO
Switch functionOff-Mom
Current rating50 mAMax · 24VDC
| Power | |
|---|---|
| Contact Rating @ Voltage | 0.05A @ 24VDC |
| Illumination Voltage (Nominal) | 3.35 VDC |
| Environment and package | |
| Actuator Height off PCB, Vertical | 8.40mm |
| Mounting Type | Surface Mount |
| Operating Temperature | -30°C~85°C |
| Package | Tube |
| Other | |
| Actuator Length, Right Angle | - |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Base Product Number | 4ASH9 |
| Circuit | SPST-NO |
| Features | Sealed - Flux Protection |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Blue |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10,000,000 Cycles |
| Mfr | MEC Switches |
| Operating Force | 300gf |
| Outline | 10.10mm x 10.10mm |
| Product Status | Active |
| Series | Multimec® 4 |
| Switch Function | Off-Mom |
| Switch Travel | 1.00mm |
| Termination Style | Gull Wing |
