49SMLB25.0000-20GHE-E(T)
Diodes IncorporatedUnited States

49SMLB25.0000-20GHE-E(T)

ActiveCrystals

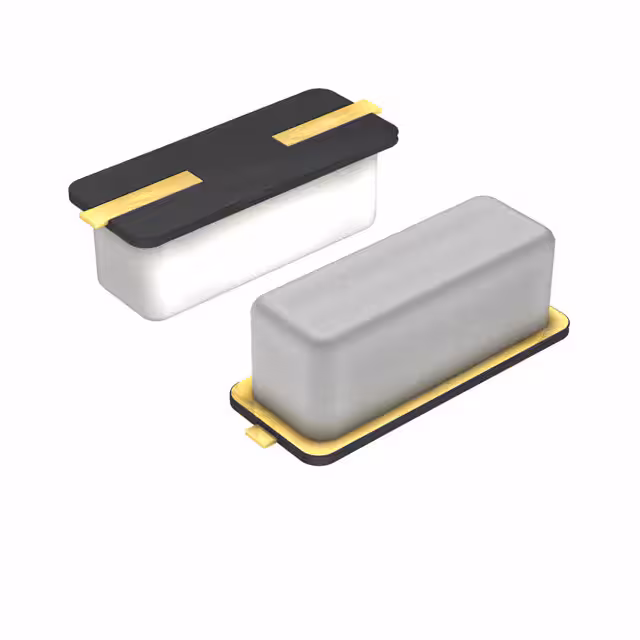

CRYSTAL 25.0000MHZ 20PF SMD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Frequency25 MHz
Frequency tolerance30 ppm
Load capacitance20 pF
AC and DC characteristics
Frequency25 MHz
Frequency Stability±50ppm
Frequency Tolerance±30ppm
Environment and package
Height - Seated (Max)0.165" (4.20mm)
Mounting TypeSurface Mount
Operating Temperature-40°C~85°C
PackageTape & Reel (TR)
Package / CaseHC-49/US
Size / Dimension0.461" L x 0.189" W (11.70mm x 4.80mm)
Other
Base Product Number49SMLB25.0000
Load Capacitance20pF
MfrDiodes Incorporated
Operating ModeFundamental
Product StatusActive
Ratings-
SeriesSaRonix-eCera™ 49SMLB
TypeMHz Crystal

Documents

No documents are linked to this part yet.
