49SMLB245-18(T)
Diodes IncorporatedUnited States

49SMLB245-18(T)

ActiveCrystals

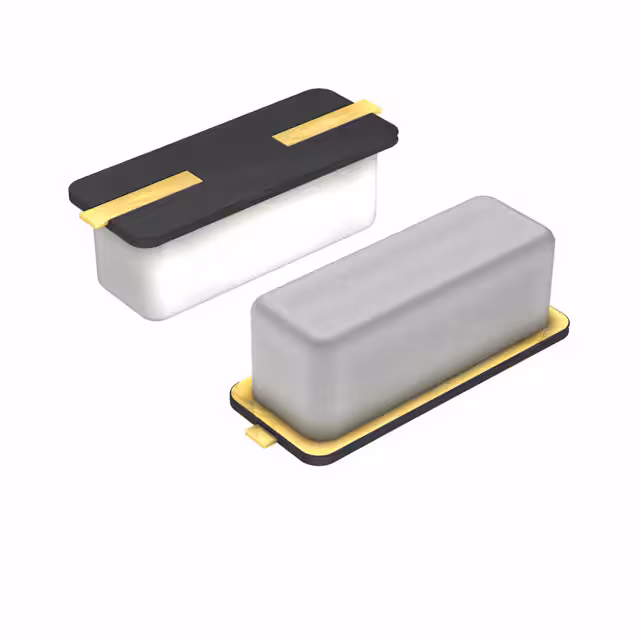

CRYSTAL 24.5000MHZ 18PF SMD

See alternativesAsk AI FAE

All alternatives

View full report

Technical parameters

Key specs

Frequency24.5 MHz
Frequency tolerance50 ppm
Load capacitance18 pF
AC and DC characteristics
Frequency24.5 MHz
Frequency Stability0ppm, -100ppm
Frequency Tolerance±50ppm
Environment and package
Height - Seated (Max)0.165" (4.20mm)
Mounting TypeSurface Mount
Operating Temperature-20°C~70°C
PackageTape & Reel (TR)
Package / CaseHC-49/US
Size / Dimension0.461" L x 0.189" W (11.70mm x 4.80mm)
Other
Base Product Number49SMLB245
Load Capacitance18pF
MfrDiodes Incorporated
Operating ModeFundamental
Product StatusActive
Ratings-
SeriesSaRonix-eCera™ 49SMLB
TypeMHz Crystal

Documents

No documents are linked to this part yet.
