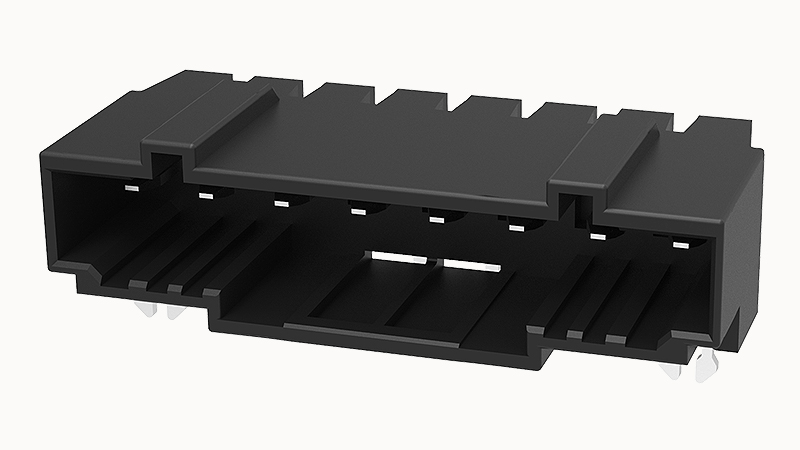

Key specs
Positions8
Rows1
Pitch5 mm
Current rating14.5 AMax
| Power | |
|---|---|
| Overvoltage category/pollution level | III/3 / III/2 / II/2 |
| Rated current | 16A |
| Rated current (B) | 14.5A |
| Rated current (D) | 10A |
| Rated surge voltage(II/2) | 4KV |
| Rated surge voltage(III/2) | 4KV |
| Rated surge voltage(III/3) | 4KV |
| Rated voltage | 250V |
| Rated voltage (B) | 300V |
| Rated voltage (D) | 300V |
| Rated voltage(II/2) | 320V |
| Rated voltage(III/2) | 250V |
| Rated voltage(III/3) | 160V |
| Environment and package | |
| Ambient temperature (assembly) | -5℃~100℃ |
| Ambient temperature (operation) | -40℃~105℃(depending on derating curve) |
| Ambient temperature (storage / transport) | -40℃~70℃ |
| Other | |
| 9EDGRC-5.0-08P-1Y-100Z(H).stp | Download |
| 9EDGRC-5.0-XXP-1Y-100Z(H).dxf | Download |
| 9EDGRC-5.0-XXP-1Y-100Z(H).pdf | Download |
| Application category | B / C / D |
| AWG | / / / / / |
| bolt driver | / |
| Bridge components | / |
| Code strip | / |
| Connection direction | 0° |
| Contact material | Copper alloy |
| Contact zone metal surface | Gold plate |
| else | / |
| Environmental items | Compliant with REACH/RoHS |
| Flammability rating | UL94V-0 |
| Insulating material group | Ⅰ |
| Insulation Materials | PA66 |
| Line taking tool | DG010 |
| Marking bar | / |
| Number of potentials | 8 |
| Number of rows | 1 |
| Order number | 10020008329 |
| Packing unit | 300 |
| Pin arrangement | Single row in a straight line |
| Pitch | 5mm |
| Pluggable or not | Yes |
| Process | Wave soldering/manual soldering |
| Products weight (without packaging) | 5.95 |
| Relative humidity (storage/transport) | 30% ~ 70% |
| Shell color | Black |
| Test Specification | IEC61984/ UL1059 |
| Type of installation | PCB welding |
| Type of packaging | box-packed |
| Wiring capacity | / / / / / |
