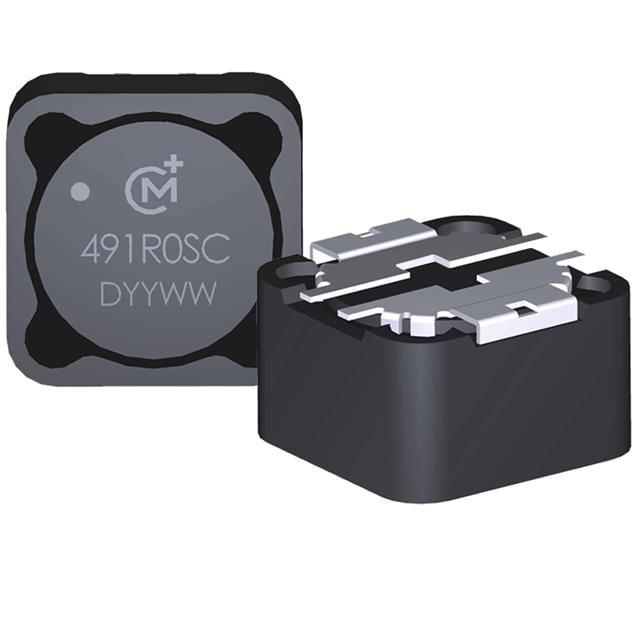

FIXED IND 1MH 500MA 1.5 OHM SMD
All alternatives
View full reportTechnical parameters
Key specs
Inductance1 mH
Rated current500 mAMax
DC resistance1.5 ΩMax
| Power | |
|---|---|
| Current Rating (Amps) | 500 mA |
| Current - Saturation (Isat) | - |
| AC and DC characteristics | |
| Frequency - Self Resonant | 3MHz |
| Inductance Frequency - Test | 10 kHz |
| Environment and package | |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~85°C |
| Package | Tape & Reel (TR); Cut Tape (CT); Digi-Reel® |
| Package / Case | Nonstandard, 4 Lead |
| Size / Dimension | 0.480" L x 0.480" W (12.20mm x 12.20mm) |
| Supplier Device Package | - |
| Other | |
| Base Product Number | 49 |
| DC Resistance (DCR) | 1.5Ohm Max |
| Inductance | 1 mH |
| Material - Core | - |
| Mfr | Murata Power Solutions Inc. |
| Product Status | Active |
| Q @ Freq | 26 @ 800kHz |
| Ratings | - |
| Series | 4900S |
| Shielding | Shielded |
| Tolerance | ±20% |
| Type | Wirewound |
